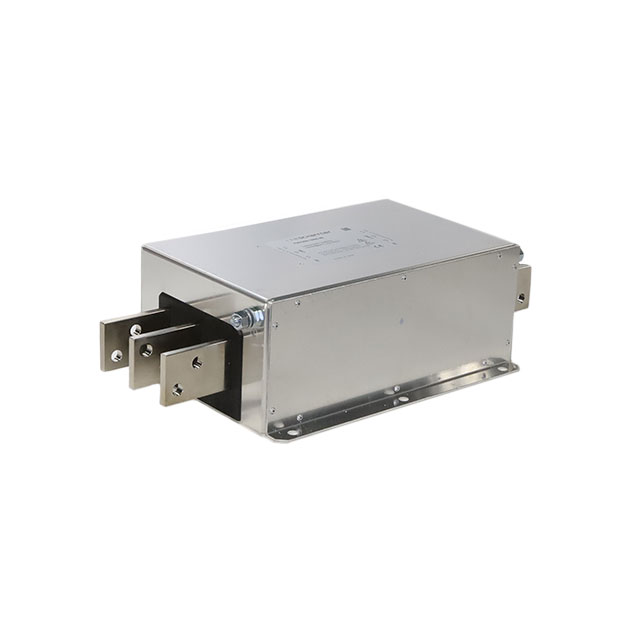

FN3359-1600-99

Active

TE Connectivity Raychem Cable Protection

THREE PHASE EMI FILTER, 520V, 60HZHZ, ROHS COMPLIANT PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN3359-1600-99

Active

TE Connectivity Raychem Cable Protection

THREE PHASE EMI FILTER, 520V, 60HZHZ, ROHS COMPLIANT PACKAGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN3359-1600-99

Applications	General Purpose
Approval Agency	cURus, ENEC
Configuration	Three Stage
Current	1.6 kA
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Post
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Schaffner FN3359 Series

Part	Applications	Approval Agency	Mounting Type	Filter Type	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration	Voltage - Rated AC (Phase to Phase)	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [custom]	Current
TE Connectivity Raychem Cable Protection FN3359-800-99	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	300 V	Three Stage	520 V	Terminal Post	60 Hz	DC	-25 °C 100 °C	800 A
TE Connectivity Raychem Cable Protection FN3359-320-99	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	300 V	Three Stage	520 V	Terminal Post	60 Hz	DC	-25 °C 100 °C	320 A
TE Connectivity Raychem Cable Protection FN3359-600-99	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	300 V	Three Stage	520 V	Terminal Post	60 Hz	DC	-25 °C 100 °C	600 A
TE Connectivity Raychem Cable Protection FN3359HV-150-28	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	400 V	Three Stage	690 V	Threaded Post (M10)	60 Hz	DC	-25 °C 100 °C	150 A
TE Connectivity Raychem Cable Protection FN3359HV-180-28	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	400 V	Three Stage	690 V	Threaded Post (M10)	60 Hz	DC	-25 °C 100 °C	180 A
TE Connectivity Raychem Cable Protection FN3359HV-800-99	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	400 V	Three Stage	690 V	Terminal Post	60 Hz	DC	-25 °C 100 °C	800 A
TE Connectivity Raychem Cable Protection FN3359HV-1000-99	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	400 V	Three Stage	690 V	Terminal Post	60 Hz	DC	-25 °C 100 °C	1 kA
TE Connectivity Raychem Cable Protection FN3359-400-99	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	300 V	Three Stage	520 V	Terminal Post	60 Hz	DC	-25 °C 100 °C	400 A
TE Connectivity Raychem Cable Protection FN3359-150-28	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	300 V	Three Stage	520 V	Threaded Post (M10)	60 Hz	DC	-25 °C 100 °C	150 A
TE Connectivity Raychem Cable Protection FN3359-1600-99	General Purpose	cURus ENEC	Chassis Mount	Three Phase (Delta)	300 V	Three Stage	520 V	Terminal Post	60 Hz	DC	-25 °C 100 °C	1.6 kA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3426.65

Description

General part information

Schaffner FN3359 Series

Three Phase (Delta) EMC/EMI Line Filter 1.6 kA DC ~ 60Hz Three Stage Terminal Post
