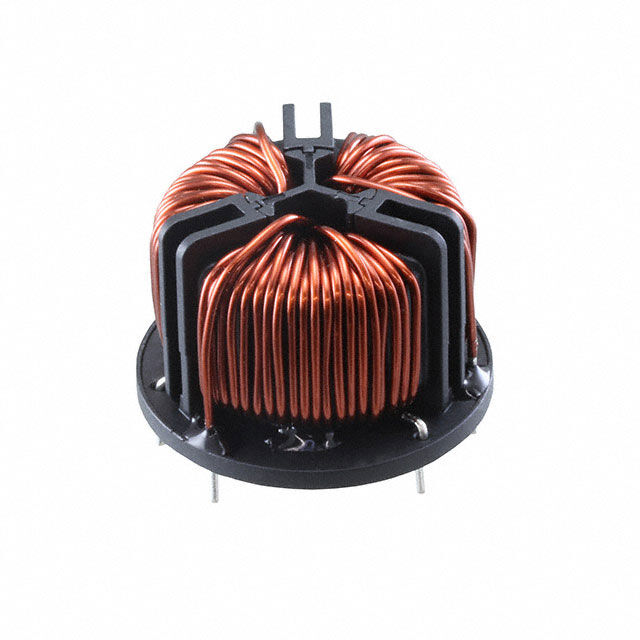

RT8132-63-0M3

Active

TE Connectivity Raychem Cable Protection

HORIZONTAL 63 A PCB THREE LINE C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RT8132-63-0M3

Active

TE Connectivity Raychem Cable Protection

HORIZONTAL 63 A PCB THREE LINE C

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT8132-63-0M3

DC Resistance (DCR) (Max) [Max]	0.7 mOhm
Filter Type	Power Line
Height (Max)	42 mm
Height (Max) [Max]	1.654 in
Mounting Type	Through Hole
Number of Lines	3
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	12
Package / Case	Horizontal
Size / Dimension	66 mm
Size / Dimension [diameter]	2.598 in
Voltage Rating - AC	600 V

Schaffner RT-Series Series

Common Mode Chokes / Filters 20A 2.5mH 3-Wire Vert PCB Mounting

Part	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Mounting Type	Current Rating (Max) [Max]	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance @ Frequency	Filter Type	Height (Max) [Max]	Height (Max) [Max]	DC Resistance (DCR) (Max)	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Size / Dimension	Size / Dimension	DC Resistance (DCR) (Max) [Max]	Height (Max)
TE Connectivity Raychem Cable Protection RT8532-20-2M5	6 Leads	Vertical	100 °C	-40 °C	600 V	Through Hole	20 A	3	2.205 in	1.457 in	37 mm	56 mm	2.5 mH	Power Line	2.362 in	60 mm	7 mOhm
TE Connectivity Raychem Cable Protection RT8122-40-1M2		Horizontal 8 PC Pin	100 °C	-40 °C	300 V	Through Hole		2					1.2 mH	Power Line	1.457 in	37 mm	2.2 mOhm	62 mm	2.441 "	425 VDC
TE Connectivity Raychem Cable Protection RT8522-50-1M0	8 Leads	Vertical	100 °C	-40 °C	300 V	Through Hole		2					1 mH	Power Line	2.52 in	64 mm	1.7 mOhm			425 VDC	42 mm 64 mm	1.654 in 2.52 in
TE Connectivity Raychem Cable Protection RT8532-10-4M0	6 Leads	Vertical	100 °C	-40 °C	600 V	Through Hole	10 A	3	1.929 in	1.339 in	34 mm	49 mm	4 mH 100 kHz	Power Line	2.087 in	53 mm	15 mOhm
TE Connectivity Raychem Cable Protection RT8122-20-3M0	4 Lead	Horizontal	100 °C	-40 °C	300 V	Through Hole	20 A	2					3 mH	Power Line	1.457 in	37 mm	7 mOhm	57 mm	2.244 in	425 VDC
TE Connectivity Raychem Cable Protection RT8122-32-1M5		Horizontal 8 PC Pin	100 °C	-40 °C	300 V	Through Hole		2					1.5 mH	Power Line	1.457 in	37 mm		62 mm	2.441 "	425 VDC			3.4 mOhm
TE Connectivity Raychem Cable Protection RT8132-63-0M3	12	Horizontal	100 °C	-40 °C	600 V	Through Hole		3						Power Line	1.654 in				2.598 in		66 mm		0.7 mOhm	42 mm
TE Connectivity Raychem Cable Protection RT8122-32-1M5		Horizontal 8 PC Pin	100 °C	-40 °C	300 V	Through Hole		2					1.5 mH	Power Line	1.457 in	37 mm		62 mm	2.441 "	425 VDC			3.4 mOhm
TE Connectivity Raychem Cable Protection RT8532-16-3M0	6 Leads	Vertical	100 °C	-40 °C	600 V	Through Hole	16 A	3	2.205 in	1.457 in	37 mm	56 mm	3 mH	Power Line	2.362 in	60 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.64

Description

General part information

Schaffner RT-Series Series

Common Mode Chokes / Filters 20A 2.5mH 3-Wire Vert PCB Mounting

Documents

Technical documentation and resources

Datasheet

Digital Datasheet
