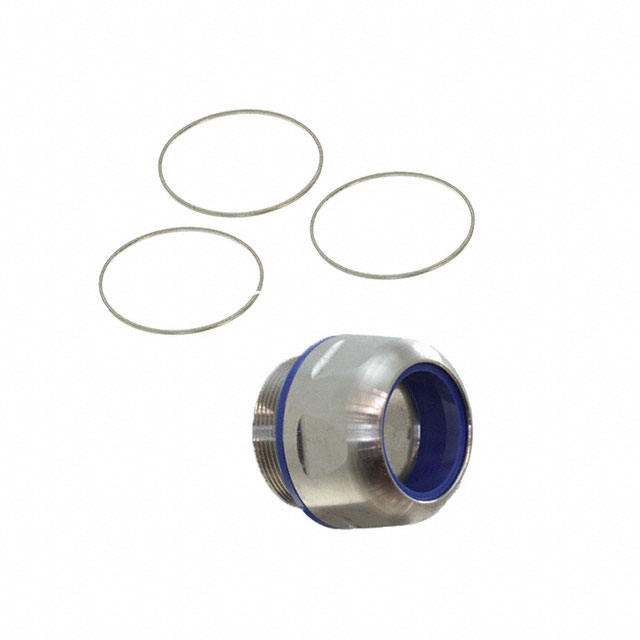

BG240VACP

Active

Pflitsch

CABLE GLAND 26-29MM M40 S STEEL

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 26-29MM M40 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	BG240VACP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	1.142 in
Outside Cable Diameter (Max) [Max] [diameter]	29 mm
Outside Cable Diameter (Min) [Min]	1.024 in
Outside Cable Diameter (Min) [Min]	26 mm
Panel Hole Size	40 mm
Panel Hole Size	1.575 in
Thread Length	0.433 in
Thread Length	11 mm
Thread Size	M40x1.5
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Thread Length	Thread Length	Ingress Protection	Panel Hole Size	Panel Hole Size	Color	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Type
Pflitsch BG240VA26CP	85 °C	-40 °C	Stainless Steel	0.433 in	11 mm	IP66 IP68 IP69	40 mm	1.575 in	Silver	Sealing Ring	26 mm	1.024 "	0.906 in	23 mm	M40x1.5	Cable Gland
Pflitsch BG240VATRICP	85 °C	-40 °C	Brass Nickel Plated	0.886 in	22.5 mm	IP68/IP69 - Dust Tight Water Resistant Waterproof	40 mm	1.575 in	Silver	Sealing Ring	29 mm	1.142 in	1.024 in	26 mm	M40x1.5	Cable Gland
Pflitsch BG240VACP	85 °C	-40 °C	Stainless Steel	0.433 in	11 mm	IP66 IP68 IP69	40 mm	1.575 in	Silver	Sealing Ring	29 mm	1.142 in	1.024 in	26 mm	M40x1.5	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.53

General part information

Cable Gland Stainless Steel M40x1.5 Silver
