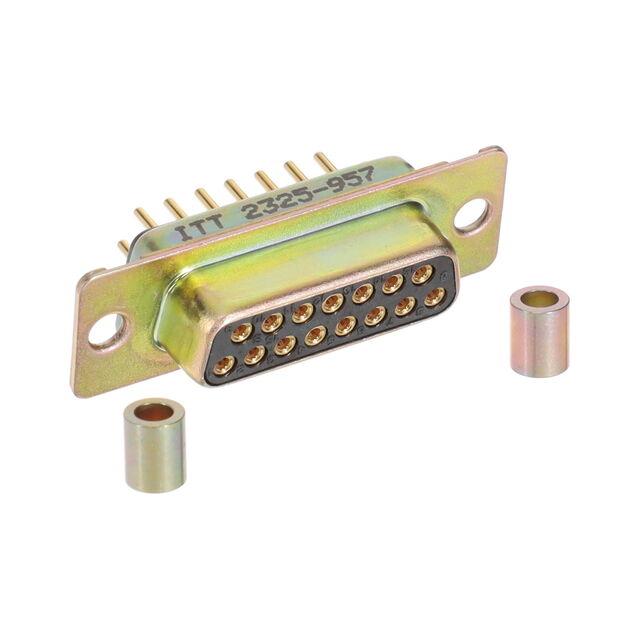

Specification	M24308/23-20F

Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Type	Signal
Current Rating	7.5 A
Dielectric Material	Polyester
Finish	Yellow Chromate Plated Cadmium
Flange Feature	Shell (Unthreaded), Housing
Mounting Type	Panel Mount, Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder

M24308/23 Series

Part	Number of Positions	Connector Style	Current Rating	Features	Number of Rows	Flange Feature	Termination	Connector Type	Contact Finish Thickness	Mounting Type	Contact Finish	Shell Size	Connector Layout	Shell Material, Finish	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Finish	Shell Material
ITT Cannon, LLC M24308/23-40Z	37 pos	D-Sub	7.5 A	Mounting Brackets	2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Right Angle Through Hole	Gold	4	C DC	Steel Yellow Chromate Plated Zinc	Signal	150 °C	-55 °C	Polyester
ITT Cannon, LLC M24308/23-35Z	50	D-Sub	7.5 A	Mounting Brackets	3	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Right Angle Through Hole	Gold	5	D DD	Steel Yellow Chromate Plated Zinc	Signal	150 °C	-55 °C	Polyester
ITT Cannon, LLC M24308/23-22F	37 pos	D-Sub	7.5 A		2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Through Hole	Gold	4	C DC		Signal	150 °C	-55 °C	Polyester	Yellow Chromate Plated Cadmium	Steel
ITT Cannon, LLC M24308/23-3F	25	D-Sub	7.5 A		2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Through Hole	Gold	3	B DB		Signal	150 °C	-55 °C	Polyester	Yellow Chromate Plated Cadmium	Steel
ITT Cannon, LLC M24308/23-13Z	9	D-Sub	7.5 A	Shielded	2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Through Hole	Gold	1	DE E	Steel Yellow Chromate Plated Zinc	Signal	125 °C	-55 °C	Thermoplastic
ITT Cannon, LLC M24308/23-27Z	25	D-Sub	7.5 A	Mounting Brackets	2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Right Angle Through Hole	Gold	3	B DB	Steel Yellow Chromate Plated Zinc	Signal	150 °C	-55 °C	Polyester
ITT Cannon, LLC M24308/23-2F	15	D-Sub	7.5 A		2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Through Hole	Gold	2	A DA		Signal	150 °C	-55 °C	Polyester	Yellow Chromate Plated Cadmium	Steel
ITT Cannon, LLC M24308/23-2Z	15	D-Sub	7.5 A		2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Through Hole	Gold	2	A DA	Steel Yellow Chromate Plated Zinc	Signal	150 °C	-55 °C	Polyester
ITT Cannon, LLC M24308/23-16F	37 pos	D-Sub	7.5 A	Shielded	2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Through Hole	Gold	4	C DC		Signal	125 °C	-55 °C	Thermoplastic	Yellow Chromate Plated Cadmium	Steel
ITT Cannon, LLC M24308/23-27F	25	D-Sub	7.5 A	Mounting Brackets	2	Housing Shell (Unthreaded)	Solder	Female Sockets Receptacle	50 µin	Panel Mount Right Angle Through Hole	Gold	3	B DB		Signal	150 °C	-55 °C	Polyester	Yellow Chromate Plated Cadmium	Steel
