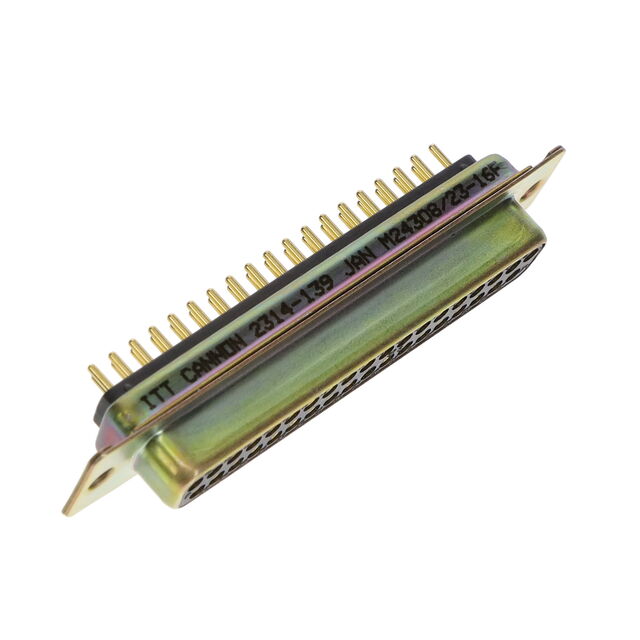

M24308/23-16F

Active

ITT Cannon, LLC

CONN D-SUB RCPT 37P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/23-16F

Active

ITT Cannon, LLC

CONN D-SUB RCPT 37P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/23-16F

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

M24308/23 Series

Part	Shell Size, Connector Layout	Connector Type	Flange Feature	Contact Finish	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Style	Contact Type	Dielectric Material	Shell Material, Finish	Features	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC M24308/23-40Z	4 (DC C)	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Right Angle Through Hole	37	50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Zinc	Mounting Brackets	Solder
ITT Cannon, LLC M24308/23-35Z		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Right Angle Through Hole	50	50 µin	1.27 µm	3	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Zinc	Mounting Brackets	Solder	5
ITT Cannon, LLC M24308/23-22F	4 (DC C)	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	37	50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Cadmium		Solder
ITT Cannon, LLC M24308/23-3F		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole		50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Cadmium		Solder		B DB	3
ITT Cannon, LLC M24308/23-27Z		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Right Angle Through Hole		50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Zinc	Mounting Brackets	Solder		B DB	3
ITT Cannon, LLC M24308/23-2F		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	15	50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Cadmium		Solder	2
ITT Cannon, LLC M24308/23-2Z		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	15	50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Zinc		Solder	2
ITT Cannon, LLC M24308/23-16F	4 (DC C)	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	37	50 µin	1.27 µm	2	-55 °C	125 °C	7.5 A	D-Sub	Signal	Thermoplastic	Steel Yellow Chromate Plated Cadmium	Shielded	Solder
ITT Cannon, LLC M24308/23-19Z		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	9	50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Zinc		Solder		DE E	1
ITT Cannon, LLC M24308/23-10F	4 (DC C)	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Gold	Panel Mount Through Hole	37	50 µin	1.27 µm	2	-55 °C	150 °C	7.5 A	D-Sub	Signal	Polyester	Steel Yellow Chromate Plated Cadmium		Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 59.69
		10	$ 50.74
		25	$ 47.56
		25	$ 110.99
		50	$ 45.29
		100	$ 43.13
Newark	Each	100	$ 49.08
		250	$ 48.16

Description

General part information

M24308/23 Series

37 Position D-Sub Receptacle, Female Sockets Connector
