CS-DSDHD15MM0-005

Active

AMPHENOL CABLES ON DEMAND

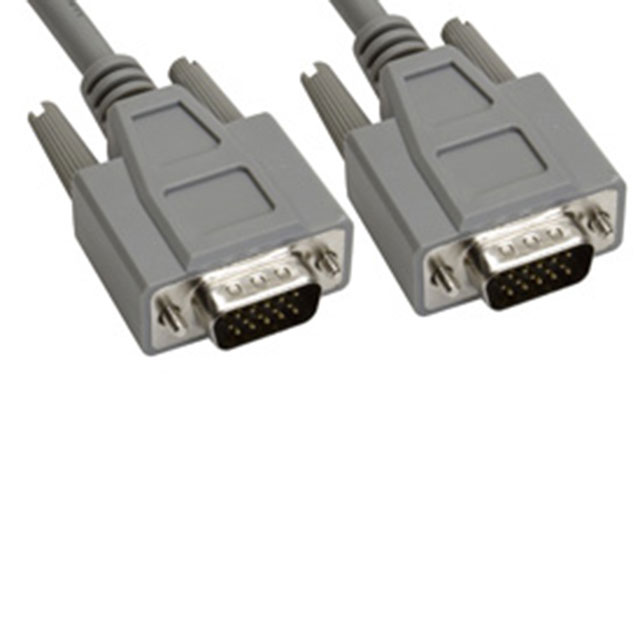

COMPUTER CABLE, HD-15 PLUG, HD-15 PLUG, 5 FT, 1.52 M, GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CS-DSDHD15MM0-005

Active

AMPHENOL CABLES ON DEMAND

COMPUTER CABLE, HD-15 PLUG, HD-15 PLUG, 5 FT, 1.52 M, GRAY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.16
		10	$ 14.32
		100	$ 12.49
		1000	$ 9.77
Newark	Each	1	$ 14.92
		5	$ 13.54
		10	$ 12.16
		25	$ 10.54
		50	$ 10.23
		100	$ 9.91
		250	$ 9.14

Description

General part information

CS-DSDHD15 Series

The CS-DSDHD15MM0-005 from Amphenol is a grey colour copper shielded male/male 15 pin (HD15) deluxe HD D-sub cable assembly. This high density male/male D-sub cable provides exceptional performance in applications where longevity and repeated disconnects is of major concern. It integrates copper tape and aluminium mylar shielded 26AWG data grade wire with pre-terminated HD15 (aka DB15HD) male and female D-sub connectors. This cable assembly is perfect for RS232 serial data, prototype, control and low voltage applications using 15 pin HD15 interface.

Specification	CS-DSDHD15MM0-005	CS-DSDHD15 Series

1st Connector	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
2nd Connector	Plug, Male Pins	Plug, Male Pins
Color	Gray, Individual (Round)	Gray, Individual (Round)
Length	1.52 m	1.52 - 3.05 m
Length	5 '	5 - 90 in
Length	-	15 - 25 ft
Length	-	4.57 - 7.62 m
Number of Positions	15	15
Shielding	Shielded	Shielded
Type	HD15	HD15

Part	2nd Connector	1st Connector	Number of Positions	Shielding	Color	Type	Length	Length	Length [x]	Length [x]
AMPHENOL CABLES ON DEMAND CS-DSDHD15MF0-007.5	Plug, Male Pins	Female Sockets, Receptacle	15	Shielded	Gray, Individual (Round)	HD15	90 in	2.29 m
AMPHENOL CABLES ON DEMAND CS-DSDHD15MM0-015	Plug, Male Pins	Plug, Male Pins	15	Shielded	Gray, Individual (Round)	HD15			15 ft	4.57 m
AMPHENOL CABLES ON DEMAND CS-DSDHD15MM0-005	Plug, Male Pins	Plug, Male Pins	15	Shielded	Gray, Individual (Round)	HD15	5 '	1.52 m
AMPHENOL CABLES ON DEMAND CS-DSDHD15MM0-007.5	Plug, Male Pins	Plug, Male Pins	15	Shielded	Gray, Individual (Round)	HD15	90 in	2.29 m
AMPHENOL CABLES ON DEMAND CS-DSDHD15MF0-025	Plug, Male Pins	Female Sockets, Receptacle	15	Shielded	Gray, Individual (Round)	HD15			25 ft	7.62 m
AMPHENOL CABLES ON DEMAND CS-DSDHD15MF0-015	Plug, Male Pins	Female Sockets, Receptacle	15	Shielded	Gray, Individual (Round)	HD15			15 ft	4.57 m
AMPHENOL CABLES ON DEMAND CS-DSDHD15MF0-010	Plug, Male Pins	Female Sockets, Receptacle	15	Shielded	Gray, Individual (Round)	HD15	10 ft	3.05 m
AMPHENOL CABLES ON DEMAND CS-DSDHD15MM0-025	Plug, Male Pins	Plug, Male Pins	15	Shielded	Gray, Individual (Round)	HD15			25 ft	7.62 m
