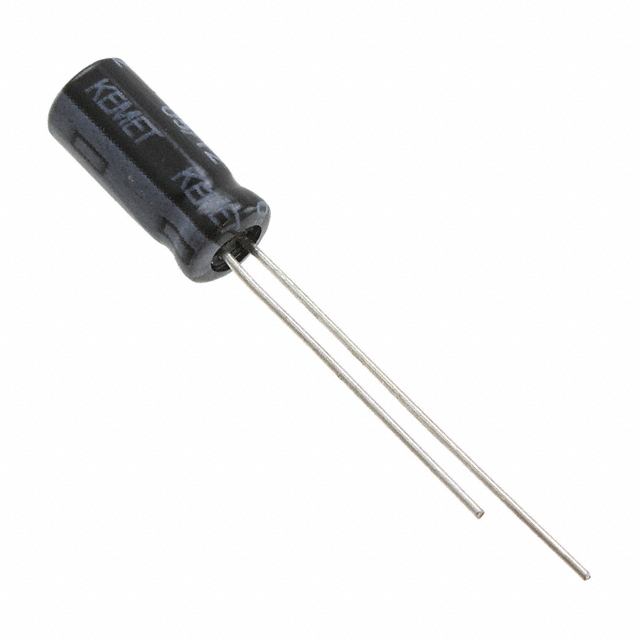

EST476M025AC3AA

Active

KEMET

CAP ALUM 47UF 20% 25V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 47UF 20% 25V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	EST476M025AC3AA

Applications	General Purpose
Capacitance	47 µF
ESR (Equivalent Series Resistance)	720 mOhm
Height - Seated (Max) [Max]	0.492 in
Height - Seated (Max) [Max]	12.5 mm
Lead Spacing	2 mm
Lead Spacing	0.079 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	210 mA
Ripple Current @ Low Frequency	84 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Ripple Current @ High Frequency	Lifetime @ Temp.	Polarization	Lead Spacing	Lead Spacing	Voltage - Rated	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Package / Case	Capacitance	Mounting Type	Tolerance
KEMET EST476M025AC3AA	5 mm	0.197 "	-40 °C	105 ░C	0.492 in	12.5 mm	General Purpose	210 mA	5000 Hrs	Polar	2 mm	0.079 in	25 VDC	720 mOhm	84 mA	Radial Can	47 µF	Through Hole	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 720mOhm @ 100kHz 5000 Hrs @ 105°C
