AXT416154

Active

Panasonic Electric Works

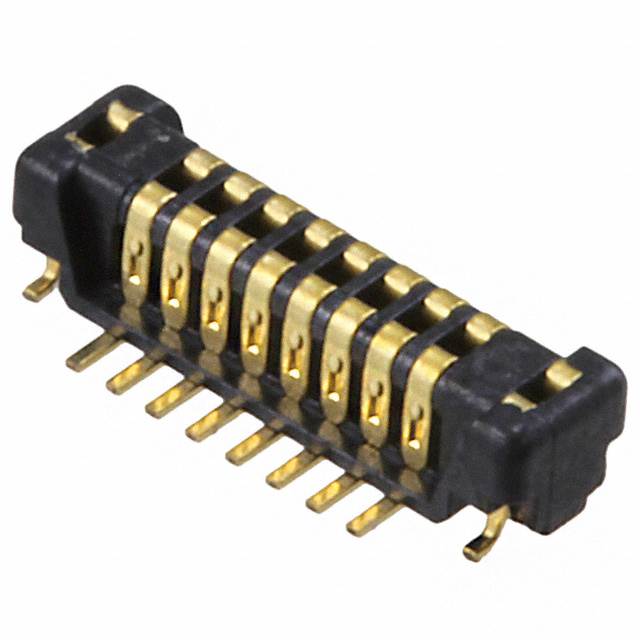

CONN HDR 16POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 16POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT416154

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Features	Contact Finish	Number of Rows	Mounting Type	Number of Positions	Height Above Board	Height Above Board	Connector Type
Panasonic Electric Works AXT416154	1.5 mm 2.5 mm	0.016 in	0.4 mm	Board Guide Solder Retention	Gold	2	Surface Mount	16	0.049 in	1.25 mm	Header Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 4.66

General part information

16 Position Connector Header, Center Strip Contacts Surface Mount Gold
