RN114-4-02-1M5
ActiveTE Connectivity Raychem Cable Protection
CMC 1.5MH 4A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RN114-4-02-1M5
ActiveTE Connectivity Raychem Cable Protection
CMC 1.5MH 4A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RN114-4-02-1M5 |
|---|---|
| Approval Agency | ENEC, UR, VDE |
| Current Rating (Max) [Max] | 4 A |
| DC Resistance (DCR) (Max) | 34 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 13.5 mm |
| Height (Max) [Max] | 0.531 in |
| Inductance @ Frequency | 1.5 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 22.5 mm |
| Size / Dimension [x] | 0.886 " |
| Size / Dimension [y] | 0.846 in |
| Size / Dimension [y] | 21.5 mm |
| Voltage Rating - AC | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.24 | |
| 10 | $ 1.90 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.57 | |||
| 100 | $ 1.31 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.19 | |||
| 1000 | $ 1.12 | |||
| 2500 | $ 1.09 | |||
Description
General part information
RN114 Series

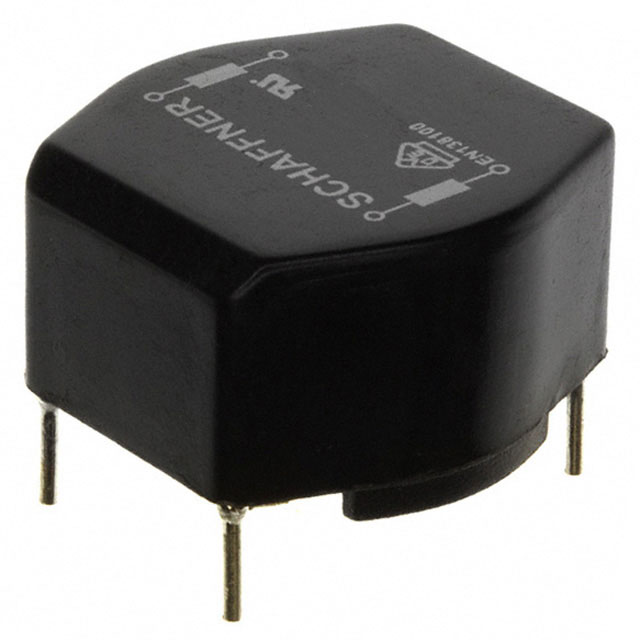

1.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 34mOhm (Typ)
