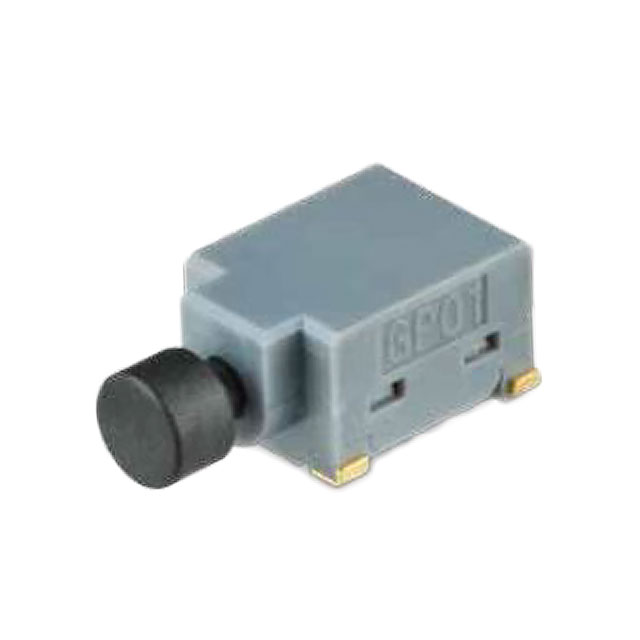

GP0115ACAG30-R

NKK Switches

PUSHBUTTON SWITCH, ULTRA-MINIATURE, GP01 SERIES, SPST-NO, OFF-(ON), ROUND, BLACK

Search across all available documentation for this part.

NKK Switches

PUSHBUTTON SWITCH, ULTRA-MINIATURE, GP01 SERIES, SPST-NO, OFF-(ON), ROUND, BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Electrical Life	Circuit	Switch Function	Actuator Marking	Type	Color - Actuator/Cap	Actuator Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Mounting Type	Current Rating (Amps)	Voltage Rating - DC
NKK Switches GP0115ACAG30-R	J Lead	40000 Cycles	SPST-NO	Off-Mom	No Marking	Standard	Black	Button Round	28 V	85 °C	-40 °C	40000 Cycles	Surface Mount Right Angle	0.4 VA	28 V
NKK Switches GP0115ACBG30	J Lead	40000 Cycles	SPST-NO	Off-Mom	No Marking	Standard	White	Button Round	28 V	85 °C	-40 °C	40000 Cycles	Surface Mount Right Angle	0.4 VA	28 V
NKK Switches GP0115AAG30-R	J Lead	40000 Cycles	SPST-NO	Off-Mom	No Marking	Standard		Plunger for Cap	28 V	85 °C	-40 °C	40000 Cycles	Surface Mount Right Angle	0.4 VA	28 V
NKK Switches GP0115ACAG30	J Lead	40000 Cycles	SPST-NO	Off-Mom	No Marking	Standard	Black	Button Round	28 V	85 °C	-40 °C	40000 Cycles	Surface Mount Right Angle	0.4 VA	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.79
	Digi-Reel®	1	$ 6.79
	Tape & Reel (TR)	500	$ 4.67
		1000	$ 4.45
Newark	Each	250	$ 6.42

General part information

Pushbutton Switch SPST-NO Standard Surface Mount, Right Angle
