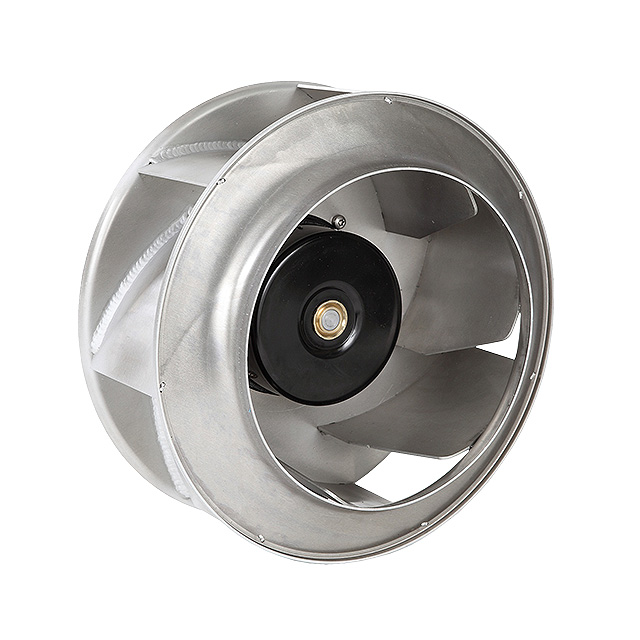

Specification	GTB036FUC21R N1

Air Flow	2159 CFM
Approval Agency	cUL, TUV, UL
Bearing Type	Ball
Current Rating	3.62 A
Fan Type	Motorized Impellers
Features	PWM Control
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP54
Lifetime	60000 Hrs
Material - Blade	Aluminum
Material - Frame	Steel
Noise	78 dB
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	510 W
RPM	2100 RPM
Size / Dimension Diameter	360 mm
Size / Dimension Shape	Round
Static Pressure	2.685 in H2O
Voltage - Rated	230 VAC
Voltage Range (Max)	277 VAC
Voltage Range (Min)	200 VAC
Weight	14 lb
Width	210.2 mm

GTB036 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Width	RPM	Noise	Fan Type	Voltage - Rated	Ingress Protection IP Rating	Ingress Protection Description	Features	Approval Agency	Weight	Air Flow	Bearing Type	Static Pressure	Size / Dimension Shape	Size / Dimension Diameter	Power (Watts)	Voltage Range (Min)	Voltage Range (Max)	Current Rating	Material - Blade	Lifetime	Material - Frame	Termination
Delta Electronics GTB036FUC23R N1	-25 °C	60 °C	229.6 mm	1730 RPM	72 dB	Motorized Impellers	230 VAC	IP54	Dust Protected Water Resistant	PWM Control	cUL TUV UL	16 lbs	2473 CFM	Ball	2.016 in H2O	Round	360 mm	320 W	200 VAC	277 VAC	3.6 A	Aluminum	60000 Hrs	Aluminum
Delta Electronics GTB036PUD25R	-25 °C	60 °C	250.8 mm	2200 RPM	80 dB	Motorized Impellers	400 V	IP54	Dust Protected Water Resistant	PWM Control Speed Sensor (Tach)	cUL TUV UL	23 lbs	3054 CFM	Ball	3.33 in H2O	Round	360.2 mm	648 W	380 VAC	480 VAC	1.75 A	Aluminum	60000 Hrs	Aluminum	Terminal Block
Delta Electronics GTB036PUD25R N1	-25 °C	60 °C	250.8 mm	2200 RPM	80 dB	Motorized Impellers	400 V	IP54	Dust Protected Water Resistant	PWM Control Speed Sensor (Tach)	cUL TUV UL	23 lbs	3054 CFM	Ball	3.33 in H2O	Round	360.2 mm	648 W	380 VAC	480 VAC	1.75 A	Aluminum	60000 Hrs	Aluminum	Terminal Block
Delta Electronics GTB036FUC21R	-25 °C	60 °C	210.2 mm	2100 RPM	78 dB	Motorized Impellers	230 VAC	IP54	Dust Protected Water Resistant	PWM Control	cUL TUV UL	12 lbs	2159 CFM	Ball	2.685 in H2O	Round	360 mm	510 W	200 VAC	277 VAC	3.62 A	Aluminum	60000 Hrs	Aluminum
Delta Electronics GTB036FUC23R	-25 °C	60 °C	229.6 mm	1730 RPM	72 dB	Motorized Impellers	230 VAC	IP54	Dust Protected Water Resistant	PWM Control	cUL TUV UL	16 lbs	2473 CFM	Ball	2.016 in H2O	Round	360 mm	320 W	200 VAC	277 VAC	3.6 A	Aluminum	60000 Hrs	Aluminum
Delta Electronics GTB036FUC21R N1	-25 °C	60 °C	210.2 mm	2100 RPM	78 dB	Motorized Impellers	230 VAC	IP54	Dust Protected Water Resistant	PWM Control	cUL TUV UL	14 lb	2159 CFM	Ball	2.685 in H2O	Round	360 mm	510 W	200 VAC	277 VAC	3.62 A	Aluminum	60000 Hrs	Steel
