Specification	APTGLQ100A120TG

Configuration	Half Bridge
Current - Collector (Ic) (Max)	170 A
Current - Collector Cutoff (Max)	50 µA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	6.15 nF
Mounting Type	Chassis Mount
NTC Thermistor	Yes
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Package Name	SP4
Power - Max	520 W
Vce(on) (Max)	2.42 V
Voltage - Collector Emitter Breakdown (Max)	1200 V

APTGLQ100 Series

1200V/Boost chopper/IGBT modules

Part	IGBT Type	Vce(on) (Max)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Configuration	Package / Case	Package Name	NTC Thermistor	Current - Collector Cutoff (Max)	Current - Collector (Ic) (Max)	Voltage - Collector Emitter Breakdown (Max)	Power - Max	Input Capacitance (Cies) @ Vce	Input
Microchip Technology APTGLQ100H65T3G	Trench Field Stop	2.3 V	Chassis Mount	175 °C	-40 °C	Full Bridge	Module	SP3F	Yes	50 µA	135 A	650 V	350 W	6.15 nF	Standard
Microchip Technology APTGLQ100A120T3AG	Trench Field Stop	2.4 V	Through Hole	175 °C	-40 °C	Half Bridge	SP3	SP3	Yes	50 µA	185 A	1200 V	650 VA	6.15 nF	Standard
Microchip Technology APTGLQ100DA120T1G	Trench Field Stop	2.42 V	Chassis Mount	175 °C	-40 °C	Boost Chopper	Module	SP1	Yes	50 µA	170 A	1200 V	520 W	6.15 nF	Standard

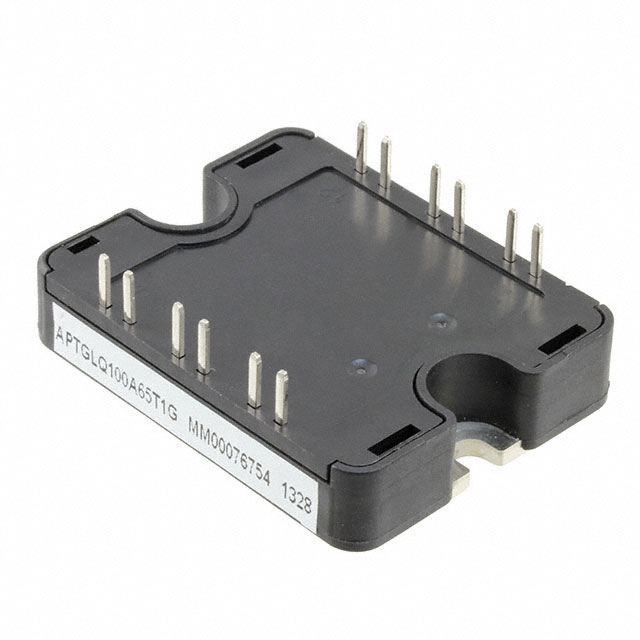

Microchip Technology APTGLQ100A65T1G	Trench Field Stop	2.3 V	Through Hole	175 °C	-40 °C	Half Bridge	SP1	SP1	Yes	100 µA	200 A	650 V	350 W	6 nF	Standard
Microchip Technology APTGLQ100A120TG	Trench Field Stop	2.42 V	Chassis Mount	175 °C	-40 °C	Half Bridge	Module	SP4	Yes	50 µA	170 A	1200 V	520 W	6.15 nF	Standard
