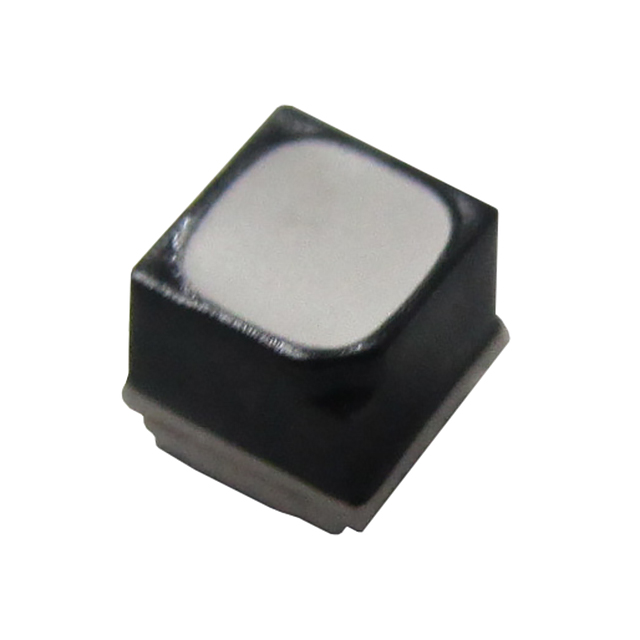

CLY6D-FKC-CNP1ST1E1BB7D3D3

Active

Cree LED

R:ANY 1 INTENSITY BIN FROM NP TO N,HUE:RB(619-624NM);G:ANY 1 INTENSITY BIN FROM ST TO Q,ANY 1 HUE FR

Search across all available documentation for this part.

Active

Cree LED

R:ANY 1 INTENSITY BIN FROM NP TO N,HUE:RB(619-624NM);G:ANY 1 INTENSITY BIN FROM ST TO Q,ANY 1 HUE FR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 2.7V Green, 3V Blue 6-SMD, J-Lead

Technical documentation and resources

Specification	CLY6D-FKC-CNP1ST1E1BB7D3D3	CLY6D Series

Color	Red, Green, Blue	Red, Green, Blue
Configuration	Independent	Independent
Current - Test [custom]	15 mA	15 mA
Current - Test [custom]	10 mA	10 mA
Current - Test [custom]	10 mA	10 mA
Height (Max) [Max] [z]	2.6 mm	2.6 mm
Lens Style	Rectangle with Flat Top	Square with Flat Top, Rectangle with Flat Top
Millicandela Rating	1405 mcd, 268 mcd, 878 mcd	268 - 1405 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	6-SMD, J-Lead	6-SMD, J-Lead
Size / Dimension [x]	2.8 mm	2.8 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	6-PLCC	6-PLCC
Voltage - Forward (Vf) (Typ) [custom]	2.1 V	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3 V	3 V
Voltage - Forward (Vf) (Typ) [custom]	2.7 V	2.7 - 3 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm	470 - 622 nm

Part	Configuration	Lens Style	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Mounting Type	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height (Max) [Max] [z]	Color	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Millicandela Rating
Cree LED CLY6D-FKC-CMPQSGJBB7A363	Independent	Square with Flat Top	15 mA	10 mA	10 mA	Surface Mount	470 nm, 530 nm, 622 nm	3 V	3 V	2.1 V	2.6 mm	Blue, Green, Red	6-SMD, J-Lead	2.8 mm	2.8 mm	6-PLCC
Cree LED CLY6D-FKC-CNP1ST1E1BB7D3D3	Independent	Rectangle with Flat Top	15 mA	10 mA	10 mA	Surface Mount	470 nm, 530 nm, 622 nm	2.7 V	3 V	2.1 V	2.6 mm	Blue, Green, Red	6-SMD, J-Lead	2.8 mm	2.8 mm	6-PLCC	268 mcd, 878 mcd, 1405 mcd
