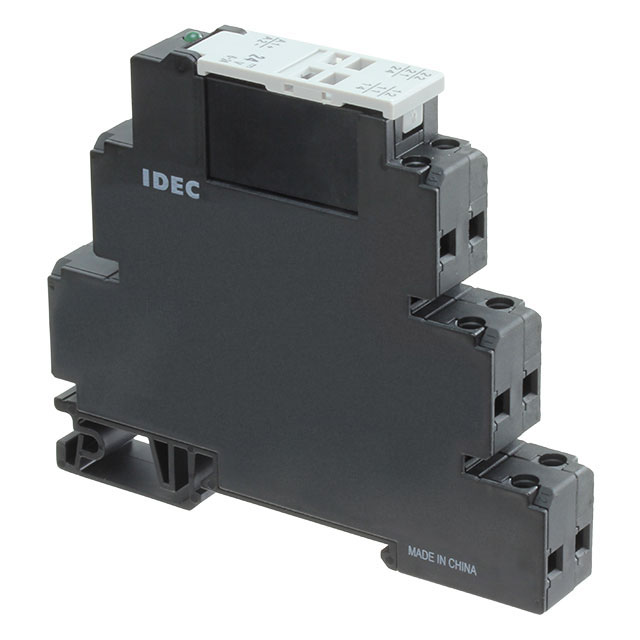

Industrial Relays 14mm SPDT 12VAC/DC Screw C1D2
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | RV8H-2L-AD110-C1D2 | RV8H Series |
|---|---|---|
| Approval Agency | cULus, CE | cULus, CE |
| Coil Current | 5.8 mA | 3.3 - 75 mA |
| Coil Resistance | 21.5 kOhms | 1.14 - 750 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC | 9 - 230 VAC/DC |
| Contact Form | DPDT (2 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 8 A | 6 - 16 A |
| Features | Socket Included | Socket Included |
| Load - Max Switching | - | 750 - 2400 W |
| Mounting Type | DIN Rail | DIN Rail |
| Must Operate Voltage | 96 VAC | 4.8 - 198 VAC/DC |
| Must Release Voltage | 8.4 VAC | 0.42 - 16.1 VAC/DC |
| Operate Time | 15 ms | 15 ms |
| Operating Temperature [Max] | 55 °C | 55 - 70 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 15 ms | 15 - 20 ms |
| Switching Voltage | 250 VAC | 250 VAC |
| Switching Voltage | - | 125 - 400 VDC |
| Termination Style | Screw Terminal | Screw Terminal, Spring Terminal |
Industrial Relays 14mm SPDT 12VAC/DC Screw C1D2
| Part | Load - Max Switching | Must Operate Voltage | Coil Resistance | Contact Material | Contact Rating (Current) | Coil Current | Must Release Voltage | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage | Mounting Type | Coil Voltage | Coil Type | Termination Style | Contact Form | Relay Type | Switching Voltage | Operate Time | Release Time | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation RV8H-L-AD110-HD | 750 W, 2400 VA | 99 VAC/DC | 31.79 kOhms | Gold (Au), Silver Nickel (AgNi) | 6 A | 3.4 mA | 7.7 VAC/DC | CE, cULus | -40 °C | 70 °C | 125 VDC, 400 VAC | DIN Rail | 110 VAC/DC | Non Latching | Screw Terminal | SPDT (1 Form C) | General Purpose | ||||
IDEC Corporation RV8H-1S1-AD12-C1D2 | 9.6 VAC/DC | 414 Ohms | Silver Nickel (AgNi) | 12 A | 29 mA | 0.84 VAC/DC | CE, cULus | -40 °C | 70 °C | DIN Rail | 12 VAC/DC | Non Latching | Spring Terminal | SPDT (1 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-2L-AD48-C1D2 | 38.4 VAC | 5.3 kOhms | Gold (Au), Silver Nickel (AgNi) | 8 A | 9 mA | 3.36 VAC/DC | CE, cULus | -40 °C | 55 °C | DIN Rail | 48 VAC/DC | Non Latching | Screw Terminal | DPDT (2 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-2L-AD24 | 19.2 VAC | 1.14 kOhms | Gold (Au), Silver Nickel (AgNi) | 8 A | 21 mA | 1.68 VAC/DC | CE, cULus | -40 °C | 55 °C | DIN Rail | 24 VAC | Non Latching | Screw Terminal | DPDT (2 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-1S1-AD110-C1D2 | 96 VAC | 21.5 kOhms | Silver Nickel (AgNi) | 12 A | 5.8 mA | 8.4 VAC | CE, cULus | -40 °C | 70 °C | DIN Rail | 120 VAC, 120 VDC | Non Latching | Spring Terminal | SPDT (1 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-2S-AD110-C1D2 | 96 VAC | 21.5 kOhms | Gold (Au), Silver Nickel (AgNi) | 6 A | 5.8 mA | 8.4 VAC | CE, cULus | -40 °C | 70 °C | DIN Rail | 120 VAC, 120 VDC | Non Latching | Spring Terminal | DPDT (2 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-2L-D9-C1D2 | 7.2 VDC | 205 Ohms | Gold (Au), Silver Nickel (AgNi) | 8 A | 44 mA | 0.63 VDC | CE, cULus | -40 °C | 55 °C | DIN Rail | 9 VDC | Non Latching | Screw Terminal | DPDT (2 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-2S-D9-C1D2 | 7.2 VDC | 205 Ohms | Gold (Au), Silver Nickel (AgNi) | 6 A | 44 mA | 0.63 VDC | CE, cULus | -40 °C | 70 °C | DIN Rail | 9 VDC | Non Latching | Spring Terminal | DPDT (2 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-2L-AD24-C1D2 | 19.2 VAC | 1.14 kOhms | Gold (Au), Silver Nickel (AgNi) | 8 A | 21 mA | 1.68 VAC/DC | CE, cULus | -40 °C | 55 °C | DIN Rail | 24 VAC | Non Latching | Screw Terminal | DPDT (2 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included | ||
IDEC Corporation RV8H-1S1-AD48-C1D2 | 38.4 VAC | 5.3 kOhms | Silver Nickel (AgNi) | 12 A | 9 mA | 3.36 VAC/DC | CE, cULus | -40 °C | 70 °C | DIN Rail | 48 VAC/DC | Non Latching | Spring Terminal | SPDT (1 Form C) | General Purpose | 250 VAC | 15 ms | 15 ms | Socket Included |
