RV8H-2L-AD24

Active

IDEC Corporation

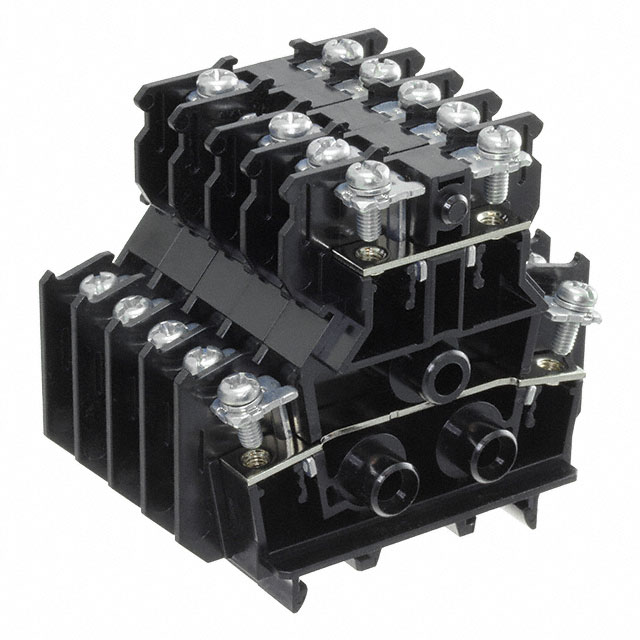

POWER RELAY, IP20, DPDT, 24 VAC/VDC, 8 A, RV8 SERIES, DIN RAIL, AC / DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

RV8H-2L-AD24

Active

IDEC Corporation

POWER RELAY, IP20, DPDT, 24 VAC/VDC, 8 A, RV8 SERIES, DIN RAIL, AC / DC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RV8H-2L-AD24	RV8H Series

Approval Agency	cULus, CE	cULus, CE
Coil Current	21 mA	3.3 - 75 mA
Coil Resistance	1.14 kOhms	1.14 - 750 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	9 - 230 VAC/DC
Contact Form	DPDT (2 Form C)	SPDT (1 Form C), DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	6 - 16 A
Features	Socket Included	Socket Included
Load - Max Switching	-	750 - 2400 W
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	19.2 VAC	4.8 - 198 VAC/DC
Must Release Voltage	1.68 VAC/DC	0.42 - 16.1 VAC/DC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	55 °C	55 - 70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	15 ms	15 - 20 ms
Switching Voltage	250 VAC	250 VAC
Switching Voltage	-	125 - 400 VDC
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal

RV8H Series

Industrial Relays 14mm SPDT 12VAC/DC Screw C1D2

Part	Load - Max Switching	Must Operate Voltage	Coil Resistance	Contact Material	Contact Rating (Current)	Coil Current	Must Release Voltage	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Mounting Type	Coil Voltage	Coil Type	Termination Style	Contact Form	Relay Type	Switching Voltage	Operate Time	Release Time	Features
IDEC Corporation RV8H-L-AD110-HD	750 W, 2400 VA	99 VAC/DC	31.79 kOhms	Gold (Au), Silver Nickel (AgNi)	6 A	3.4 mA	7.7 VAC/DC	CE, cULus	-40 °C	70 °C	125 VDC, 400 VAC	DIN Rail	110 VAC/DC	Non Latching	Screw Terminal	SPDT (1 Form C)	General Purpose
IDEC Corporation RV8H-1S1-AD12-C1D2		9.6 VAC/DC	414 Ohms	Silver Nickel (AgNi)	12 A	29 mA	0.84 VAC/DC	CE, cULus	-40 °C	70 °C		DIN Rail	12 VAC/DC	Non Latching	Spring Terminal	SPDT (1 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-2L-AD48-C1D2		38.4 VAC	5.3 kOhms	Gold (Au), Silver Nickel (AgNi)	8 A	9 mA	3.36 VAC/DC	CE, cULus	-40 °C	55 °C		DIN Rail	48 VAC/DC	Non Latching	Screw Terminal	DPDT (2 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-2L-AD24		19.2 VAC	1.14 kOhms	Gold (Au), Silver Nickel (AgNi)	8 A	21 mA	1.68 VAC/DC	CE, cULus	-40 °C	55 °C		DIN Rail	24 VAC	Non Latching	Screw Terminal	DPDT (2 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-1S1-AD110-C1D2		96 VAC	21.5 kOhms	Silver Nickel (AgNi)	12 A	5.8 mA	8.4 VAC	CE, cULus	-40 °C	70 °C		DIN Rail	120 VAC, 120 VDC	Non Latching	Spring Terminal	SPDT (1 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-2S-AD110-C1D2		96 VAC	21.5 kOhms	Gold (Au), Silver Nickel (AgNi)	6 A	5.8 mA	8.4 VAC	CE, cULus	-40 °C	70 °C		DIN Rail	120 VAC, 120 VDC	Non Latching	Spring Terminal	DPDT (2 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-2L-D9-C1D2		7.2 VDC	205 Ohms	Gold (Au), Silver Nickel (AgNi)	8 A	44 mA	0.63 VDC	CE, cULus	-40 °C	55 °C		DIN Rail	9 VDC	Non Latching	Screw Terminal	DPDT (2 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-2S-D9-C1D2		7.2 VDC	205 Ohms	Gold (Au), Silver Nickel (AgNi)	6 A	44 mA	0.63 VDC	CE, cULus	-40 °C	70 °C		DIN Rail	9 VDC	Non Latching	Spring Terminal	DPDT (2 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-2L-AD24-C1D2		19.2 VAC	1.14 kOhms	Gold (Au), Silver Nickel (AgNi)	8 A	21 mA	1.68 VAC/DC	CE, cULus	-40 °C	55 °C		DIN Rail	24 VAC	Non Latching	Screw Terminal	DPDT (2 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included
IDEC Corporation RV8H-1S1-AD48-C1D2		38.4 VAC	5.3 kOhms	Silver Nickel (AgNi)	12 A	9 mA	3.36 VAC/DC	CE, cULus	-40 °C	70 °C		DIN Rail	48 VAC/DC	Non Latching	Spring Terminal	SPDT (1 Form C)	General Purpose	250 VAC	15 ms	15 ms	Socket Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.17
		10	$ 20.24
		25	$ 19.18
		50	$ 18.42
		100	$ 17.68
		250	$ 16.76
		500	$ 16.09
Newark	Each	1	$ 24.34
		5	$ 23.73
		10	$ 23.12
		25	$ 21.90
		50	$ 20.69
		100	$ 19.47
Sager	N/A	1	$ 19.65
		11	$ 14.82
		28	$ 14.17
		57	$ 13.77
		113	$ 13.39

Description

General part information

RV8H Series

Industrial Relays 14mm SPDT 12VAC/DC Screw C1D2

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet

Document
