ActiveTE Connectivity AMP Connectors
CONN ADAPT SMC PLUG TO SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1060272-1
ActiveTE Connectivity AMP Connectors
CONN ADAPT SMC PLUG TO SMA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1060272-1 | 1060 Series |
|---|---|---|
| - | - | |
| Adapter Series | OSM to SMC | OSM to SMC, SMA to SMB |
| Adapter Type | Plug to Jack | Plug to Jack |
| Body Finish | - | Gold, Nickel |
| Body Material | Stainless Steel | Brass, Stainless Steel, Beryllium Copper |
| Cable Group | - | RG-174, 188, 316, 187, 179, RG-405 (.085" Semi Rigid) |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Brass, Iron Nickel Alloy |
| Center Contact Plating | Gold | Gold |
| Center Gender | Female to Female | Female to Female, Male to Male |
| Connector Style | - | MCX, SMB, B 25, C 11 |
| Connector Type | - | Receptacle, Female Socket, Male Pin, Plug, Jack, Header, Male Pins, Receptacle, Female Sockets |
| Connector Usage | - | Backplane |
| Contact Finish | - | Gold |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Contact Termination | - | Solder, Crimp |
| Conversion Type | Between Series | Between Series |
| Convert From (Adapter End) | SMC Plug, Female Socket | SMC Plug, Female Socket, SMA Plug, Male Pin |
| Convert To (Adapter End) | SMA Jack, Female Socket | SMA Jack, Female Socket, Male Pin, SMB Jack |
| Current Rating (Amps) | - | 1.5 A |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Snap-On, Threaded |
| Features | - | Board Guide |
| Frequency - Max [Max] | 4 GHz | 4 - 6000 MHz |
| Housing Color | - | Gold, Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | - | 1 End Cap, 1 Connector, 1 Ferrule, 1 Contact, 1 Lockwasher, 1 Ring, 1 Nut, 1 Washer, 2 Insulators, 1 Clamp |
| Insertion Loss | - | 0.03 - 0.3 dB |
| Material - Insulation | - | Polyester Thermoplastic, Glass Filled |
| Mating Cycles | - | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Free Hanging (In-Line), Right Angle, Board Edge |
| Number of Ports | - | 1 |
| Number of Positions | - | 22 - 125 |
| Number of Positions Loaded | - | All |
| Number of Rows | - | 2 - 5 |
| Operating Temperature [Max] | 125 °C | 125 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -55 ░C |
| Pitch | - | 0.079 - 0.1 in |
| Pitch | - | 2 - 2.54 mm |
| Shield Termination | - | Solder, Crimp, Clamp |
| Style | Straight | Straight |
| Termination | - | Press-Fit |
| Voltage Rating | - | 335 - 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1060 Series
CONN MCX RCPT STR 50 OHM PCB
| Part | Mounting Type | Shield Termination | Fastening Type | Impedance | Insertion Loss | Body Finish | Body Material | Center Contact Material | Housing Color | Connector Type | Contact Termination | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Frequency - Max [Max] | Voltage Rating | Center Contact Plating | Number of Ports | Mating Cycles | Includes | Cable Group | Mounting Feature | Adapter Type | Center Gender | Style | Convert From (Adapter End) | Convert To (Adapter End) | Conversion Type | Adapter Series | Number of Positions Loaded | Current Rating (Amps) | Number of Rows | Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Usage | Number of Positions | Pitch [x] | Pitch [x] | Features | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1060984-1 | Through Hole | Solder | Snap-On | 50 Ohms | 0.1 dB | Gold | Brass | Beryllium Copper | Gold | Female Socket, Receptacle | Solder | MCX | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 6000 MHz | 335 V | Gold | 1 | 500 | |||||||||||||||||||||||
TE Connectivity AMP Connectors 1060891-1 | Free Hanging (In-Line), Right Angle | Crimp | Snap-On | 50 Ohms | 0.1 dB | Nickel | Brass | Brass | Silver | Male Pin, Plug | Solder | MCX | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 6000 MHz | 335 V | Gold | 1 | 500 | 1 Connector, 1 End Cap | 179, 187, 188, 316, RG-174 | |||||||||||||||||||||
TE Connectivity AMP Connectors 1060445-1 | Solder | Snap-On | 50 Ohms | 0.3 dB | Gold | Stainless Steel | Iron Nickel Alloy | Gold | Male Pin, Receptacle | Solder | SMB | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 4 GHz | 335 V | Gold | 1 | 500 | ||||||||||||||||||||||||
TE Connectivity AMP Connectors 1060038-1 | |||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 1060787-1 | Free Hanging (In-Line), Right Angle | Solder | Snap-On | 50 Ohms | 0.1 dB | Gold | Brass | Brass | Gold | Male Pin, Plug | Solder | MCX | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 6000 MHz | 335 V | Gold | 1 | 500 | 1 Connector, 1 End Cap | RG-405 (.085" Semi Rigid) | |||||||||||||||||||||
TE Connectivity AMP Connectors 1060778-1 | Free Hanging (In-Line), Right Angle | Solder | Snap-On | 50 Ohms | 0.1 dB | Gold | Brass | Brass | Gold | Male Pin, Plug | Solder | MCX | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 4 GHz | 335 V | Gold | 1 | 500 | 1 Connector, 1 End Cap | 188, 316, RG-174 | |||||||||||||||||||||
TE Connectivity AMP Connectors 1060871-1 | Free Hanging (In-Line) | Crimp | Snap-On | 50 Ohms | 0.1 dB | Gold | Beryllium Copper | Brass | Gold | Male Pin, Plug | Crimp | MCX | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 6000 MHz | 335 V | Gold | 1 | 500 | 1 Connector, 1 Contact, 1 Ferrule | 188, 316, RG-174 | |||||||||||||||||||||
TE Connectivity AMP Connectors 1060329-1 | Clamp | Snap-On | 50 Ohms | 0.3 dB | Gold | Brass | Beryllium Copper | Gold | Jack, Male Pin | Solder | SMB | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 4 GHz | 335 V | Gold | 1 | 500 | 1 Clamp, 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Ring, 1 Washer, 2 Insulators | 188, 316, RG-174 | Bulkhead - Front Side Nut | |||||||||||||||||||||
TE Connectivity AMP Connectors 1060872-1 | Free Hanging (In-Line) | Crimp | Snap-On | 50 Ohms | 0.1 dB | Nickel | Beryllium Copper | Brass | Silver | Male Pin, Plug | Crimp | MCX | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 6000 MHz | 335 V | Gold | 1 | 500 | 1 Connector, 1 Contact, 1 Ferrule | 188, 316, RG-174 | |||||||||||||||||||||
TE Connectivity AMP Connectors 1060272-1 | Free Hanging (In-Line) | 50 Ohms | Stainless Steel | Beryllium Copper | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 4 GHz | Gold | Plug to Jack | Female to Female | Straight | Female Socket, SMC Plug | Female Socket, SMA Jack | Between Series | OSM to SMC | |||||||||||||||||||||||||||
TE Connectivity AMP Connectors 106014-1 | Board Edge, Right Angle, Through Hole | Header, Male Pins | B 25 | -55 °C | 125 °C | 500 VAC | All | 1.5 A | 5 | Press-Fit | Gold | 0.76 Ám | 30 Áin | Backplane | 125 | 0.079 in | 2 mm | ||||||||||||||||||||||||||
TE Connectivity AMP Connectors 3-106081-0 | Through Hole | Header, Male Pins | C 11 | -55 °C | 125 °C | 500 VAC | All | 1.5 A | 2, 5 | Press-Fit | Gold | 0.76 Ám | 30 Áin | Backplane | 22 positions, 55 positions | 0.079 in | 2 mm | Board Guide | |||||||||||||||||||||||||
TE Connectivity AMP Connectors 1-106026-4 | Through Hole | Receptacle, Female Sockets | All | 5 | Press-Fit | Gold | 96 | 0.1 in | 2.54 mm | Polyester Thermoplastic, Glass Filled | |||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 1060500-1 | Free Hanging (In-Line) | Snap-On, Threaded | 50 Ohms | 0.03 dB | Stainless Steel | Brass | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | 4 GHz | Gold | Plug to Jack | Male to Male | Straight | SMA Plug, Male Pin | Male Pin, SMB Jack | Between Series | SMA to SMB |
Description
General part information
1060 Series

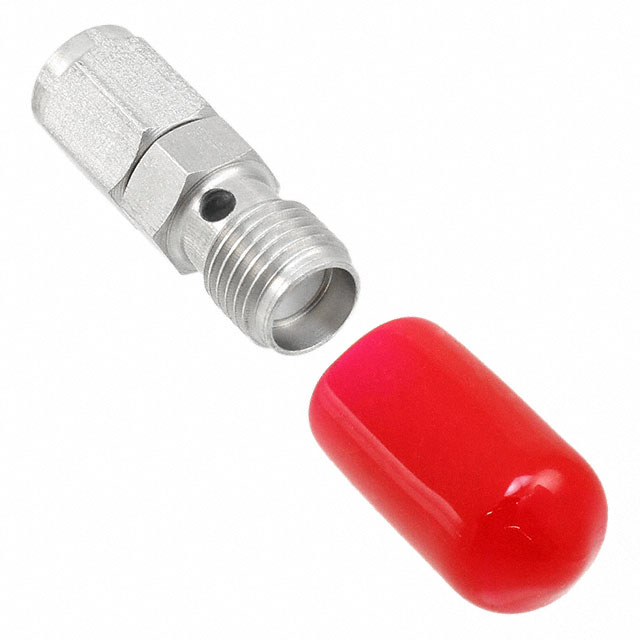

Adapter Coaxial Connector SMC Plug, Female Socket To SMA Jack, Female Socket 50 Ohms
