1-963211-1
ActiveTE Connectivity AMP Connectors

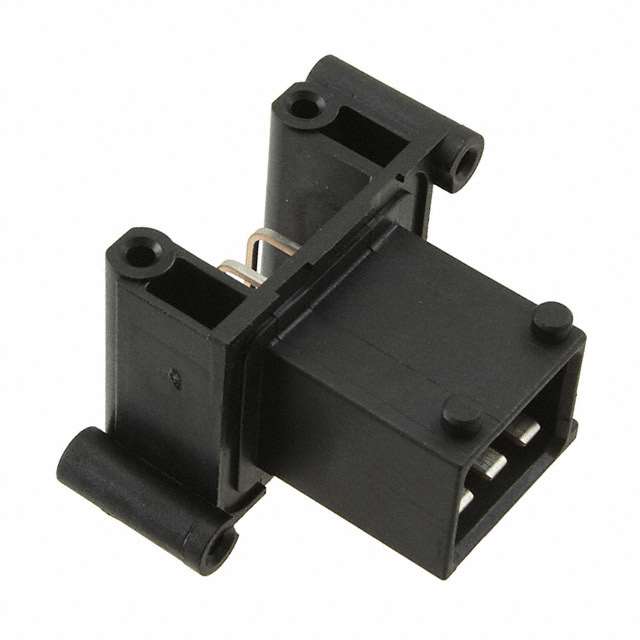

CONN HEADER R/A 6POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-963211-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 6POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-963211-1 |
|---|---|
| Applications | Automotive, General Purpose |
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122 " |
| Contact Length - Post | 3.1 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Tab |
| Fastening Type | Lever Lock |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 1.055 in |
| Insulation Height | 26.8 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 5 mm |
| Pitch - Mating | 0.197 " |
| Row Spacing - Mating | 0.236 in |
| Row Spacing - Mating | 6 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.39 | |
| 10 | $ 6.28 | |||
| 400 | $ 4.84 | |||
| 800 | $ 4.61 | |||
| 1200 | $ 4.48 | |||
963211 Series
CONN HEADER R/A 6POS 5MM
| Part | Insulation Material | Applications | Style | Features | Contact Type | Insulation Color | Pitch - Mating | Pitch - Mating | Termination | Fastening Type | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Number of Rows | Mounting Type | Shrouding | Number of Positions | Contact Material | Contact Shape | Insulation Height | Insulation Height | Connector Type | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-963211-1 | Polybutylene Terephthalate (PBT), Glass Filled | Automotive, General Purpose | Board to Board, Cable | Mounting Flange | Tab | Black | 5 mm | 0.197 " | Solder | Lever Lock | Tin | 0.122 " | 3.1 mm | All | 2 | Through Hole, Right Angle | Shrouded - 4 Wall | 6 | Copper Alloy | Rectangular | 1.055 in | 26.8 mm | Plug | 0.236 in | 6 mm |
Description
General part information
963211 Series
Connector Header Through Hole, Right Angle 6 position 0.197" (5.00mm)
