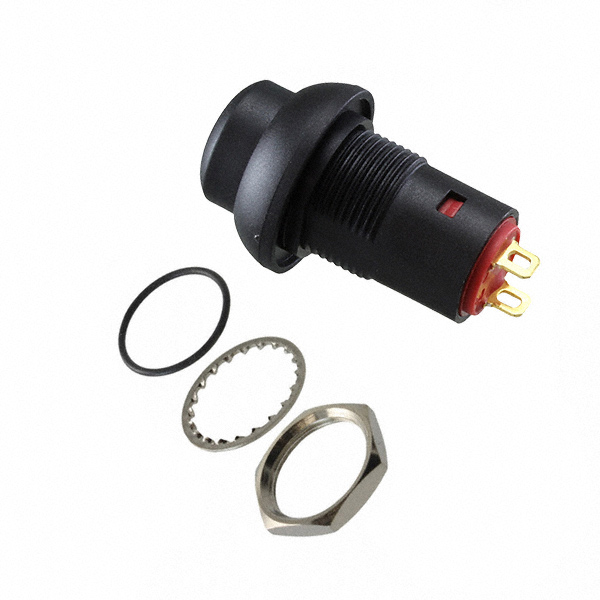

RP8201B2M1CEBLKBLKNIL

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST-NO; 0.1A/24VDC; BLACK; ON PANEL

Deep-Dive with AI

Search across all available documentation for this part.

RP8201B2M1CEBLKBLKNIL

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPST-NO; 0.1A/24VDC; BLACK; ON PANEL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP8201B2M1CEBLKBLKNIL

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	100 mA
Electrical Life	200000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	24 V

RP8200 Series

Part	Illumination Type, Color	Actuator Type	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Switch Function	Ingress Protection	Type	Illumination Voltage (Nominal)	Mounting Type	Electrical Life	Circuit	Color - Actuator/Cap	Actuator Marking
E-Switch RP8200B2M1CEBLKORGBLU	Blue LED	Button Round	100 mA	0.11 in	Quick Connect Solder	2.8 mm	-30 ░C	85 °C	24 V	13.6 mm	Off-Mom	IP67 - Dust Tight Waterproof	Illuminated Standard	2.8 VDC	Panel Mount Front	200000 Cycles	SPST-NO	Orange
E-Switch RP8200B2M1CEBLKBLKRED	LED Red	Button Round	100 mA		Solder Lug		-30 ░C	85 °C	24 V	13.6 mm	Off-On	IP67 - Dust Tight Waterproof	Illuminated Standard	2.1 VDC	Panel Mount Front	200000 Cycles	SPST	Black	No Marking
E-Switch RP8200B2M1CEBLKBLKBLU	Blue LED	Button Round	100 mA		Solder Lug		-30 ░C	85 °C	24 V	13.6 mm	Off-On	IP67 - Dust Tight Waterproof	Illuminated Standard	2.8 VDC	Panel Mount Front	200000 Cycles	SPST	Black	No Marking
E-Switch RP8200B2M1CEBLKBLKNIL		Button Round	100 mA		Solder Lug		-30 ░C	85 °C	24 V	13.6 mm	Off-On	IP67 - Dust Tight Waterproof	Standard		Panel Mount Front	200000 Cycles	SPST	Black	No Marking
E-Switch RP8200B2M1CEBLKBLKWHT	LED White	Button Round	100 mA		Solder Lug		-30 ░C	85 °C	24 V	13.6 mm	Off-On	IP67 - Dust Tight Waterproof	Illuminated Standard	3.5 VDC	Panel Mount Front	200000 Cycles	SPST	Black	No Marking
E-Switch RP8201B2M1CEBLKBLKNIL		Button Round	100 mA		Solder Lug		-30 ░C	85 °C	24 V	13.6 mm	Off-On	IP67 - Dust Tight Waterproof	Standard		Panel Mount Front	200000 Cycles	SPST	Black	No Marking
E-Switch RP8200B2M1CEBLKBLKGRN	Green LED	Button Round	100 mA		Solder Lug		-30 ░C	85 °C	24 V	13.6 mm	Off-On	IP67 - Dust Tight Waterproof	Illuminated Standard	2 VDC	Panel Mount Front	200000 Cycles	SPST	Black	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.60
		50	$ 5.40
		100	$ 5.22
		1000	$ 4.33
TME	N/A	200	$ 8.00
		250	$ 7.84
		500	$ 7.47

Description

General part information

RP8200 Series

Pushbutton Switch SPST Standard Panel Mount, Front
