800-10-011-10-002000

Active

Mill-Max Manufacturing Corp.

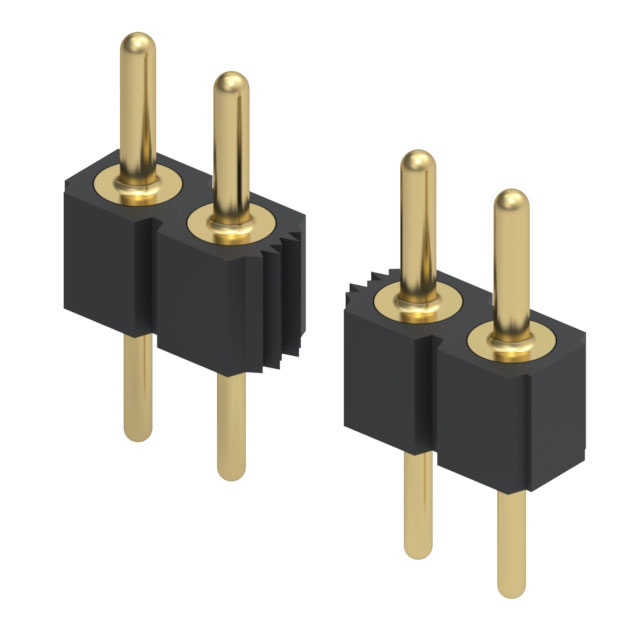

CONN HEADER VERT 11POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

800-10-011-10-002000

Active

Mill-Max Manufacturing Corp.

CONN HEADER VERT 11POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-10-011-10-002000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	3.61 mm
Contact Length - Mating	0.142 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

800-10 Series

...

Part	Connector Type	Insulation Material	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Material	Number of Positions	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Type	Number of Rows	Mounting Type	Contact Length - Mating	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length
Mill-Max Manufacturing Corp. 800-10-034-61-001000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Press-Fit Solder	0.1 in	2.54 mm	0.191 in	4.85 mm	10 çin	0.25 çm	0.104 in	2.64 mm	Circular	Brass Alloy	34	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Through Hole
Mill-Max Manufacturing Corp. 800-10-040-30-001000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	4.95 mm		10 çin	0.25 çm			Circular	Brass Alloy	40	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Surface Mount	0.195 "
Mill-Max Manufacturing Corp. 800-10-058-30-001000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	4.95 mm		10 çin	0.25 çm			Circular	Brass Alloy	58	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Surface Mount	0.195 "
Mill-Max Manufacturing Corp. 800-10-051-61-001000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Press-Fit Solder	0.1 in	2.54 mm	0.191 in	4.85 mm	10 çin	0.25 çm	0.104 in	2.64 mm	Circular	Brass Alloy	51	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Through Hole
Mill-Max Manufacturing Corp. 800-10-011-10-002000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	3.61 mm		10 çin	0.25 çm	0.118 in	3 mm	Circular	Brass Alloy	11	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Through Hole	0.142 in
Mill-Max Manufacturing Corp. 800-10-014-20-001000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	4.95 mm		10 çin	0.25 çm		3.2 mm	Circular	Brass Alloy	14	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Through Hole Right Angle	0.195 "	0.126 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 800-10-012-10-004000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	3.18 mm		10 çin	0.25 çm			Circular	Brass Alloy	12	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Through Hole	0.125 in	0.125 in	0.071 "	1.8 mm	3.18 mm	8.38 mm	0.33 in
Mill-Max Manufacturing Corp. 800-10-026-20-001000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	4.95 mm		10 çin	0.25 çm		3.2 mm	Circular	Brass Alloy	26	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Through Hole Right Angle	0.195 "	0.126 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 800-10-038-10-002000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	3.61 mm		10 çin	0.25 çm	0.118 in	3 mm	Circular	Brass Alloy	38	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Through Hole	0.142 in
Mill-Max Manufacturing Corp. 800-10-004-30-001000	Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Gold	Solder	0.1 in	2.54 mm	4.95 mm		10 çin	0.25 çm			Circular	Brass Alloy	4	Gold	Unshrouded	10 çin	0.25 çm	All	Black	Push-Pull	Male Pin	1	Surface Mount	0.195 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.14
		10	$ 2.40
		100	$ 1.85
		500	$ 1.56
		1000	$ 1.46
		5000	$ 1.25

Description

General part information

800-10 Series

Connector Header Through Hole 11 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
