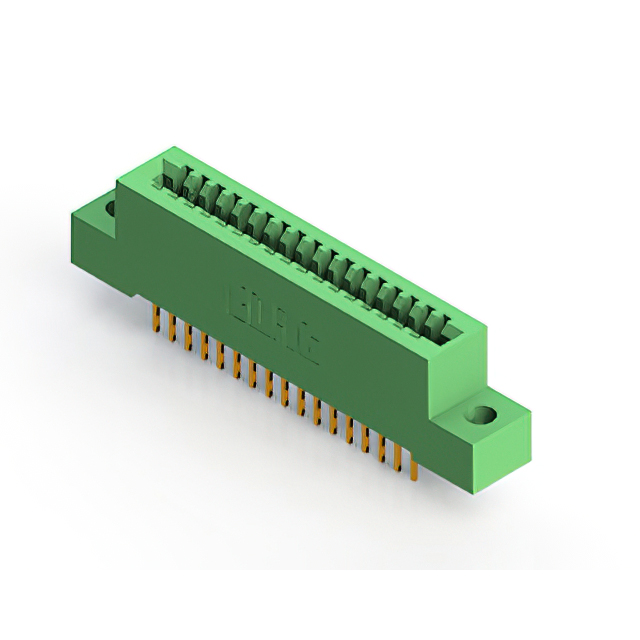

842-017-558-104

Active

EDAC Inc.

CONN EDGE SINGLE FML 17POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

842-017-558-104

Active

EDAC Inc.

CONN EDGE SINGLE FML 17POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	842-017-558-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

842-017 Series

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Color	Termination Rows	Termination	Read Out	Material - Insulation	Contact Type	Number of Rows	Pitch [x]	Pitch [x]	Gender	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 842-017-520-104	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Solder	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 842-017-558-103	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Solder	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole Right Angle	10 Áin	0.25 Ám
EDAC Inc. 842-017-540-104	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Wire Wrap	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 842-017-523-108		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Solder	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 842-017-541-108		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Wire Wrap	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 842-017-558-104	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Solder	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole Right Angle	10 Áin	0.25 Ám
EDAC Inc. 842-017-559-101				1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Solder	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole Right Angle	10 Áin	0.25 Ám
EDAC Inc. 842-017-500-103	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Solder Eyelet(s)	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 842-017-524-103	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Solder	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole	10 Áin	0.25 Ám
EDAC Inc. 842-017-542-112	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Gold	125 °C	-40 °C	Copper Alloy	Green	1	Wire Wrap	Single	Diallyl Phthalate (DAP)	Cantilever	1	2.54 mm	0.1 in	Female	Through Hole	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 89.54
Newark	Each	1	$ 103.36
		100	$ 83.18
		250	$ 76.36
		500	$ 69.95
		1000	$ 58.38

Description

General part information

842-017 Series

17 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
