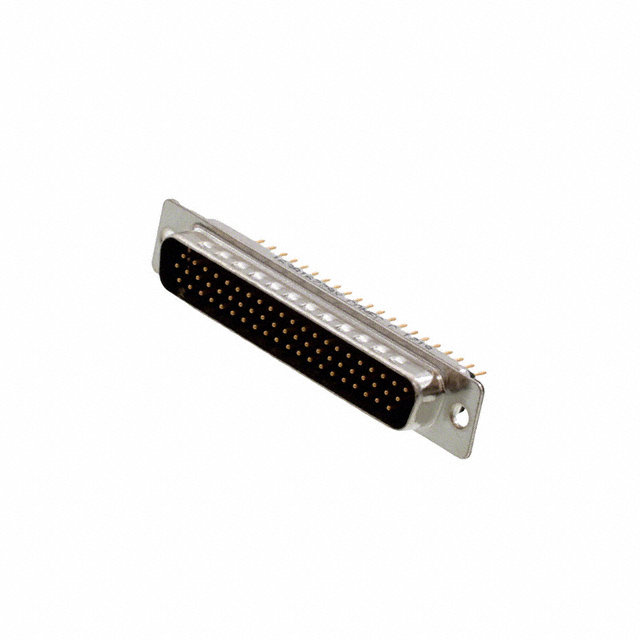

163A16779X

Active

Amphenol CONEC

CONN D-SUB HD PLUG 62P VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HD PLUG 62P VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	163A16779X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	60 VDC

Part	Connector Style	Material Flammability Rating	Wire Gauge	Features	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Flange Feature	Contact Material	Dielectric Material	Mounting Type	Voltage Rating	Number of Positions	Contact Type	Connector Type	Color	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Termination	Contact Finish Thickness
Amphenol CONEC 163A16709X	D-Sub High Density	UL94 V-0	22 AWG	Grounding Indents	3	-55 °C	125 °C	3 A	2	(DA A) High Density	Gold	Cable Side (M3)	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	60 VDC	26	Signal	Male Pins Plug	Black
Amphenol CONEC 163A16719X	D-Sub High Density	UL94 V-0	22 AWG	Grounding Indents	3	-55 °C	125 °C	3 A			Gold	Cable Side (M3)	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	60 VDC	44	Signal	Male Pins Plug	Black	3	B DB
Amphenol CONEC 163A16779X	D-Sub High Density	UL94 V-0		Grounding Indents	3	-55 °C	125 °C	3 A	4		Gold	Housing/Shell (Unthreaded)	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole	60 VDC	62	Signal	Male Pins Plug	Black			Solder	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

62 Position D-Sub, High Density Plug, Male Pins Connector
