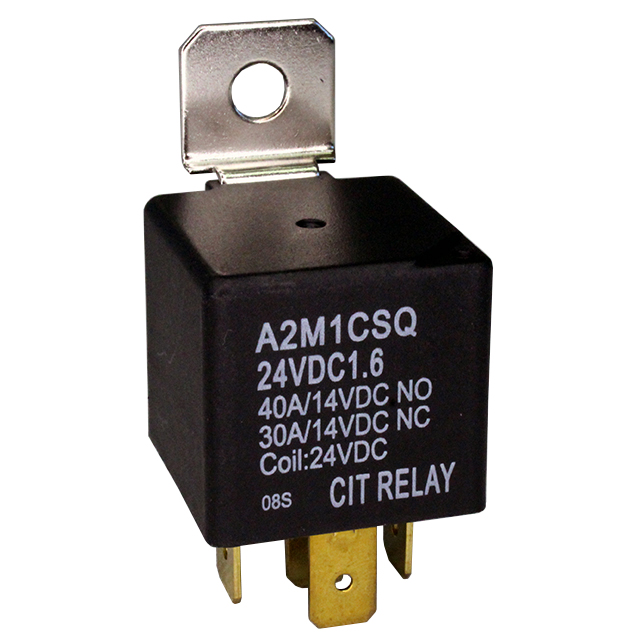

A2M1CSQ24VDC1.6D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 40A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 40A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY AUTOMOTIVE SPDT 40A 24V

Part	Coil Resistance	Coil Current	Must Release Voltage	Contact Material	Contact Form	Contact Rating (Current)	Mounting Type	Coil Type	Operate Time	Features	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Power	Must Operate Voltage	Termination Style	Release Time	Coil Voltage
CIT Relay and Switch A2M1CSQ24VDC1.6	360 Ohms	66.7 mA	2.4 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	40 A	Chassis Mount	Non Latching	7 ms	Sealed - Fully	75 VDC	125 °C	-40 °C	1.6 W	16.8 VDC	Quick Connect - 0.250" (6.3mm)	5 ms	24 VDC
CIT Relay and Switch A2M1CSQ24VDC1.6D	360 Ohms	66.7 mA	2.4 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	40 A	Chassis Mount	Non Latching	7 ms	Diode, Sealed - Fully	75 VDC	125 °C	-40 °C	1.6 W	16.8 VDC	Quick Connect - 0.250" (6.3mm)	5 ms	24 VDC
CIT Relay and Switch A2M1CSQ24VDC1.6R	360 Ohms	66.7 mA	2.4 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	40 A	Chassis Mount	Non Latching	7 ms	Resistor, Sealed - Fully	75 VDC	125 °C	-40 °C	1.6 W	16.8 VDC	Quick Connect - 0.250" (6.3mm)	5 ms	24 VDC
CIT Relay and Switch A2M1CSQ12VDC1.6D	90 Ohms	133.3 mA	1.2 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	40 A	Chassis Mount	Non Latching	7 ms	Diode, Sealed - Fully	75 VDC	125 °C	-40 °C	1.6 W	8.4 VDC	Quick Connect - 0.250" (6.3mm)	5 ms	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 40A 24V
