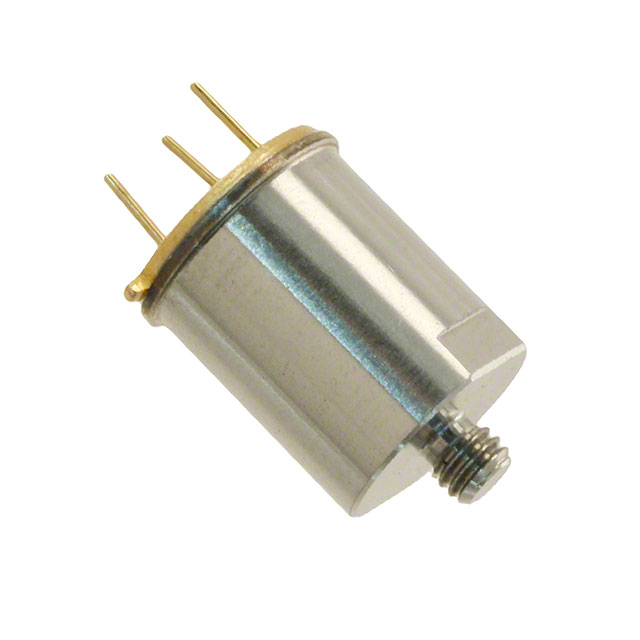

805-0050-01

Active

TE Connectivity Measurement Specialties

ACCELEROMETER 50G IEPE TO5-3

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

ACCELEROMETER 50G IEPE TO5-3

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Sensitivity (mV/g)	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Acceleration Range [Min]	Acceleration Range [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Axis	Type	Output Type	Bandwidth [Max]	Bandwidth [Min]	Acceleration Range
TE Connectivity Measurement Specialties 805-0050	TO-5-3	100 mV/g	Adhesive	30 VDC	18 V	-50 g	50 g	TO-205AA TO-5-3 Metal Can	100 °C	-40 °C	Z	Analog	IEPE
TE Connectivity Measurement Specialties 805-0500-01	TO-5	10 mV/g	Through Hole	30 VDC	18 V			TO-205AA TO-5-3 Metal Can	100 °C	-40 °C	Z	Analog	IEPE	12 kHz	0.3 Hz	500 g
TE Connectivity Measurement Specialties 805-0500	TO-5-3	10 mV/g	Through Hole	30 VDC	18 V			TO-205AA TO-5-3 Metal Can	100 °C	-40 °C	Z	Analog	IEPE	12 kHz	0.3 Hz	500 g
TE Connectivity Measurement Specialties 805-0050-01	TO-5-3	100 mV/g	Through Hole	30 VDC	18 V	-50 g	50 g	TO-205AA TO-5-3 Metal Can	100 °C	-40 °C	Z	Analog	IEPE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Accelerometer Z Axis ±50g 0.3Hz ~ 10kHz TO-5-3

Technical documentation and resources
