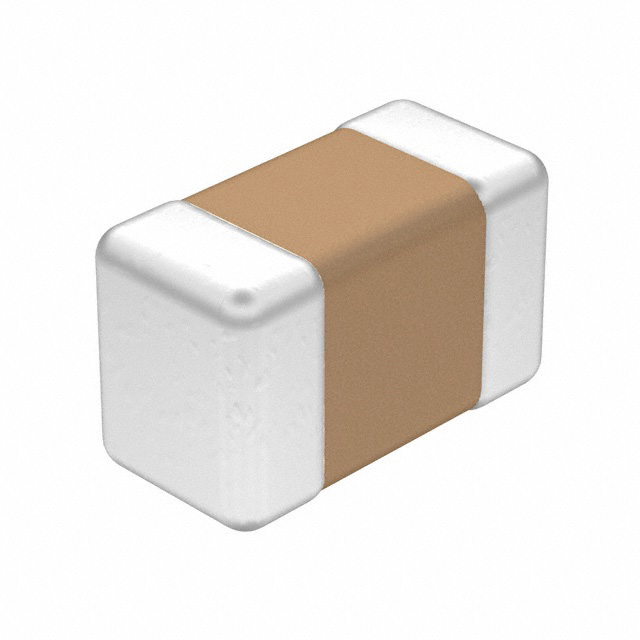

VJ0603D360KXCAC

Active

Vishay General Semiconductor - Diodes Division

CAP CER 36PF 200V C0G/NP0 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VJ0603D360KXCAC

Active

Vishay General Semiconductor - Diodes Division

CAP CER 36PF 200V C0G/NP0 0603

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VJ0603D360KXCAC

Applications	High Frequency, Microwave, RF
Capacitance	36 pF
Features	Low Loss, High Q
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max] [custom]	0.94 mm
Thickness (Max) [Max] [custom]	0.037 in
Tolerance	10 %
Voltage - Rated	200 V

VJ0603 Series

...

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Mounting Type	Capacitance	Applications	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Features	Ratings
Vishay General Semiconductor - Diodes Division VJ0603Y123MXXCW1BC	25 VDC	-55 °C	125 °C	X7R	MLCC Surface Mount	0.012 µF	General Purpose	0603 (1608 Metric)	0.034 in	0.87 mm	20 %	0.8 mm	0.063 in	1.6 mm	0.031 in
Vishay General Semiconductor - Diodes Division VJ0603D470FXXAC	25 VDC	-55 °C	125 °C	C0G NP0	MLCC Surface Mount	47 pF	High Frequency Microwave RF	0603 (1608 Metric)			1 %	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 in	High Q Low Loss
Vishay General Semiconductor - Diodes Division VJ0603A3R3BXBAC	100 V	-55 °C	150 °C	C0G NP0	MLCC Surface Mount	3.3 pF	General Purpose	0603 (1608 Metric)	0.038 in	0.97 mm	0.1 pF	0.8 mm	0.063 in	1.6 mm	0.031 in
Vishay General Semiconductor - Diodes Division VJ0603A1R8DXAPW1BC	50 VDC	-55 °C	125 °C	C0G NP0	MLCC Surface Mount	1.8 pF	General Purpose	0603 (1608 Metric)	0.034 in	0.87 mm	0.5 pF	0.8 mm	0.063 in	1.6 mm	0.031 in
Vishay General Semiconductor - Diodes Division VJ0603D8R2DXBAP	100 V	-55 °C	125 °C	C0G NP0	MLCC Surface Mount	8.2 pF	High Frequency Microwave RF	0603 (1608 Metric)			0.5 pF	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 in	High Q Low Loss
Vishay General Semiconductor - Diodes Division VJ0603Y153MXACW1BC	50 VDC	-55 °C	125 °C	X7R	MLCC Surface Mount	15000 pF	General Purpose	0603 (1608 Metric)	0.034 in	0.87 mm	20 %	0.8 mm	0.063 in	1.6 mm	0.031 in
Vishay General Semiconductor - Diodes Division VJ0603D360KXCAC	200 V	-55 °C	125 °C	C0G NP0	MLCC Surface Mount	36 pF	High Frequency Microwave RF	0603 (1608 Metric)			10 %	0.8 mm	0.063 in	1.6 mm	0.031 in	0.94 mm	0.037 in	High Q Low Loss
Vishay General Semiconductor - Diodes Division VJ0603A390JXAAP	50 VDC	-55 °C	150 °C	C0G NP0	MLCC Surface Mount	39 pF	General Purpose	0603 (1608 Metric)	0.038 in	0.97 mm	5 %	0.8 mm	0.063 in	1.6 mm	0.031 in
Vishay General Semiconductor - Diodes Division VJ0603Y472KXBAC31	100 V	-55 °C	150 °C	X7R	MLCC Surface Mount	4700 pF	Automotive	0603 (1608 Metric)	0.038 in	0.97 mm	10 %	0.8 mm	0.063 in	1.6 mm	0.031 in			High Temperature	AEC-Q200
Vishay General Semiconductor - Diodes Division VJ0603A120KXXCW1BC	25 VDC	-55 °C	125 °C	C0G NP0	MLCC Surface Mount	12 pF	General Purpose	0603 (1608 Metric)	0.034 in	0.87 mm	10 %	0.8 mm	0.063 in	1.6 mm	0.031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	8000	$ 0.08

Description

General part information

VJ0603 Series

36 pF ±10% 200V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
