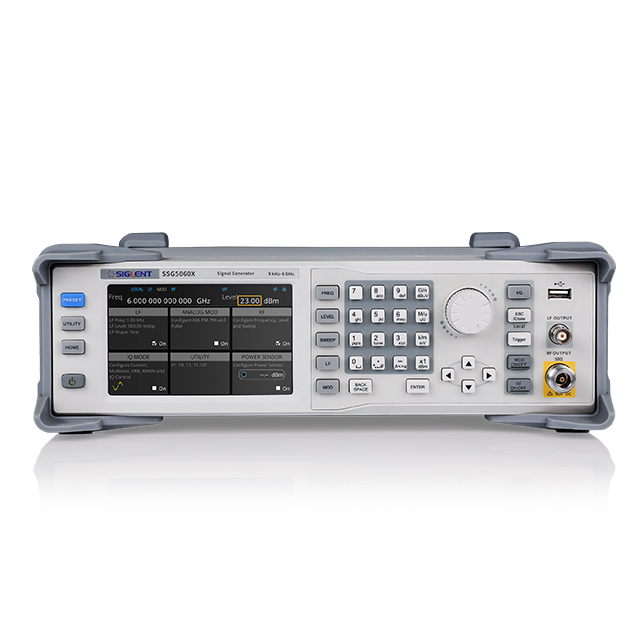

SSG5040X-V

Active

Siglent Technologies NA, Inc.

RF SIGNAL GENERATOR 9 KHZ TO 4 G

Search across all available documentation for this part.

Active

Siglent Technologies NA, Inc.

RF SIGNAL GENERATOR 9 KHZ TO 4 G

Technical Specifications

Parameters and characteristics for this part

Specification	SSG5040X-V

Display Type	TFT - Color LCD
Frequency - Max [Max]	4 GHz
Function	Sweep, Arbitrary
Number of Channels	1
Signal Types	Sine, Triangle, Pulse, Ramp, Square
Supply Voltage [Max]	240 V
Supply Voltage [Min]	100 V
Type	Function Generator

Part	Signal Types	Function	Frequency - Max [Max]	Number of Channels	Display Type	Supply Voltage [Min]	Supply Voltage [Max]	Type
Siglent Technologies NA, Inc. SSG5040X	Pulse Ramp Sine Square Triangle	Arbitrary Sweep	4 GHz	1	TFT - Color LCD	100 V	240 V	Function Generator
Siglent Technologies NA, Inc. SSG5040X-V	Pulse Ramp Sine Square Triangle	Arbitrary Sweep	4 GHz	1	TFT - Color LCD	100 V	240 V	Function Generator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14099.00

General part information

4 GHz Arbitrary, Sweep Function Generator 1 Channel Sine, Square, Triangle, Ramp, Pulse Display Type TFT - Color LCD

Technical documentation and resources
