9002-1023-006

Active

Radiall USA, Inc.

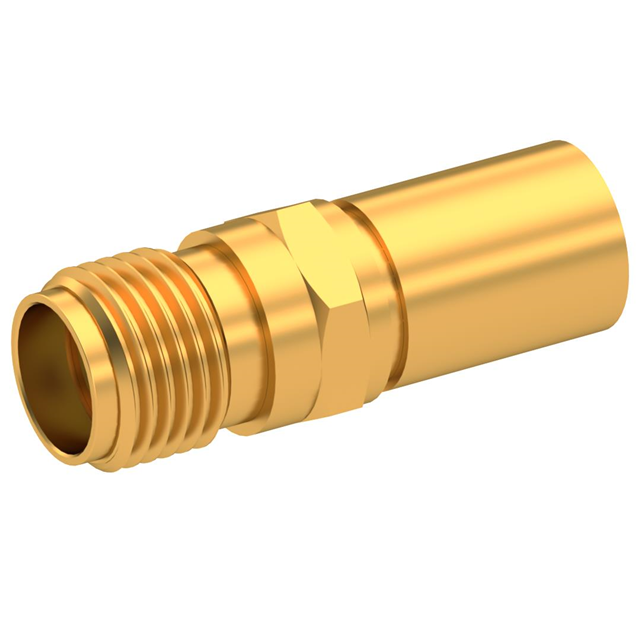

SMA / STRAIGHT JACK FEMALE CRIMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK FEMALE CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	9002-1023-006

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	141
Cable Group	RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Body Material	Center Contact Material	Mounting Type	Number of Ports	Shield Termination	Frequency - Max [Max]	Mating Cycles	Center Contact Plating	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Impedance	Housing Color	Cable Group	Cable Group	Connector Type	Dielectric Material	Contact Termination	Voltage Rating
Radiall USA, Inc. 9002-1023-002	Stainless Steel	Beryllium Copper	Free Hanging (In-Line)	1	Crimp	12.4 GHz	500	Gold	SMA	-65 ░C	165 °C	Gold	50 Ohms	Gold	196	RG-178	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Crimp
Radiall USA, Inc. 9002-1023-006	Stainless Steel	Beryllium Copper	Free Hanging (In-Line)	1	Crimp	18 GHz	500	Gold	SMA	-65 ░C	165 °C	Gold	50 Ohms	Gold	141	RG-58	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Crimp
Radiall USA, Inc. 9002-1023-003	Stainless Steel	Beryllium Copper	Free Hanging (In-Line)	1	Crimp	12.4 GHz	500	Gold	SMA	-65 ░C	165 °C	Gold	50 Ohms	Gold		188 316 RG-174	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Crimp	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 38.94

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
