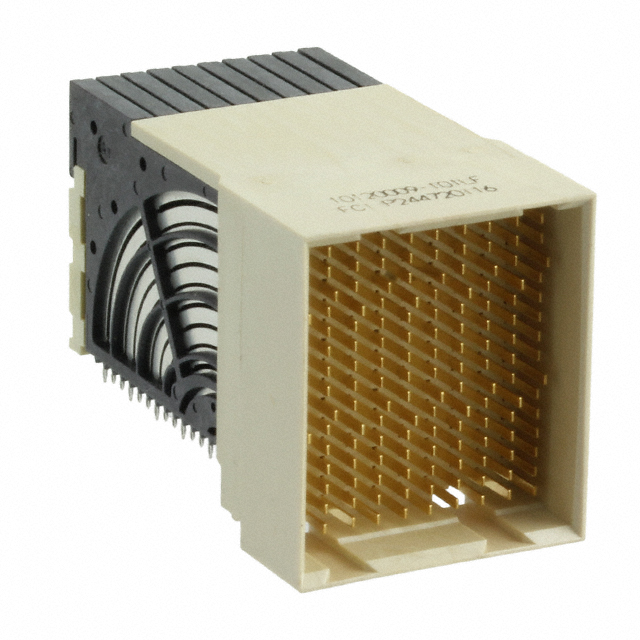

10120009-101LF

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 150POS EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 150POS EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10120009-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit
Voltage Rating	50 VAC

Part	Number of Positions Loaded	Number of Columns	Number of Positions	Mounting Type	Material Flammability Rating	Termination	Connector Usage	Connector Type	Contact Finish	Connector Style	Voltage Rating	Current Rating (Amps)	Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 10120009-101LF	All	10	150	Board Edge Right Angle Through Hole	UL94 V-0	Press-Fit	Daughtercard	Header Male Pins	Gold	High Speed	50 VAC	500 mA	Natural	85 °C	-55 °C	0.055 in	1.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	312	$ 30.38

General part information

150 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
