T37111-02-0

Active

Curtis Industries

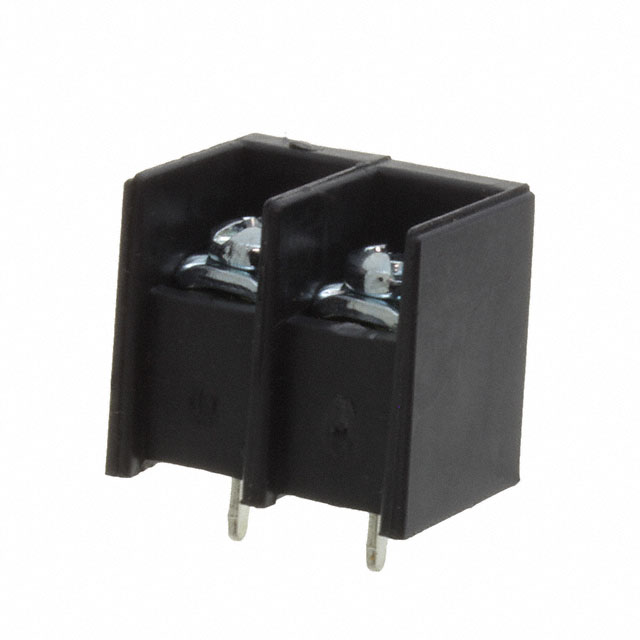

CONN BARRIER STRIP 2CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37111-02-0

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.84
		10	$ 1.39
		25	$ 1.29
		50	$ 1.16
		100	$ 1.13

Description

General part information

T37111 Series

2 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T37111-02-0	T37111 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri), 2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Current Rating (Amps)	20 A	20 A
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	2	1 - 26
Number of Rows	1	1
Number of Wire Entries	2	2 - 26
Number of Wire Entries	-	1
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate, Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

T37111 Series

CONN BARRIER STRP 26CIRC 0.375"

Part	Number of Wire Entries	Mounting Type	Number of Rows	Operating Temperature	Barrier Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Voltage Rating	Material - Insulation	Number of Circuits	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Terminal Block Type	Current Rating (Amps)	Number of Wire Entries [custom]
Curtis Industries T37111-26-0	26	Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)	26	PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A
Curtis Industries T37111-11-0	11	Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)	11	PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A
Curtis Industries T37111-02-0	2	Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)	2	PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A
Curtis Industries T37111-01-0		Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)			UL94 V-0	300 VDC	Polypropylene (PP)	1	PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A	1
Curtis Industries T37111-17-0	17	Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)	17	PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A
Curtis Industries T37111-18-0	18	Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)	18	PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A
Curtis Industries T37111-10-0	10	Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)	10	PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A
Curtis Industries T37111-09-0	9	Chassis, Panel, Through Hole	1	105 C	3 Wall (Tri)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)		PC Pin	12 AWG	22 AWG	Screws with Captive Plate	Barrier Block	20 A
Curtis Industries T37111-12-0	12	Through Hole	1	105 C	2 Wall (Dual)	9.53 mm	0.375 in	UL94 V-0	300 VDC	Polypropylene (PP)	12	PC Pin	12 AWG	22 AWG	Screws	Barrier Block	20 A
