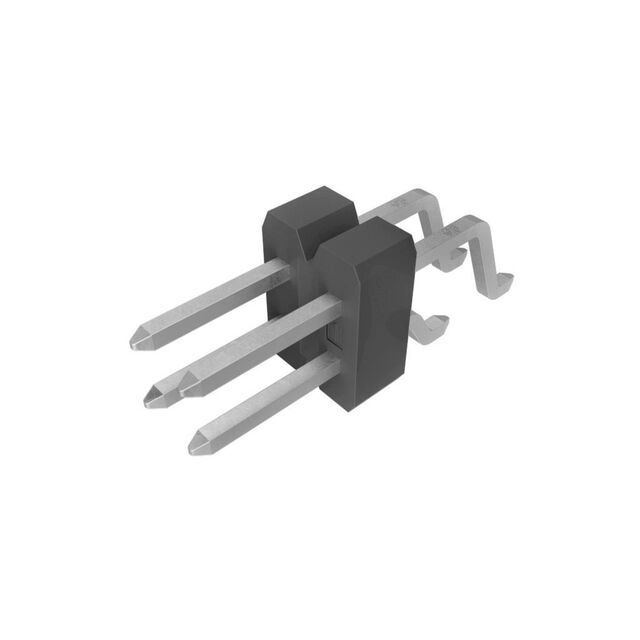

10118084-401A04LF

Active

Amphenol ICC (FCI)

CONN MOD JACK

Deep-Dive with AI

Search across all available documentation for this part.

Documentsbergstik productpresentation Other Related Document Datasheet +1

10118084-401A04LF

Active

Amphenol ICC (FCI)

CONN MOD JACK

Deep-Dive with AI

Documentsbergstik productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10118084-401A04LF

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

10118084 Series

Part	Contact Shape	Contact Finish - Post	Number of Positions Loaded	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Mounting Type	Pitch - Mating	Pitch - Mating	Fastening Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Type	Contact Material	Number of Rows	Style	Insulation Height	Insulation Height	Number of Positions	Connector Type	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Termination	Contact Length - Mating
Amphenol ICC (FCI) 10118084-402A04LF	Square	Tin	All	Black	2.54 mm	0.1 in	Thermoplastic	Surface Mount Right Angle	0.1 in	2.54 mm	Push-Pull	Unshrouded	78.7 µin	2 µm	Pick and Place	Male Pin	Copper Alloy	2	Board to Board Cable	6.35 mm	0.25 in	4	Header	UL94 V-0	0.318 "	8.08 mm	Solder
Amphenol ICC (FCI) 10118084-401A04LF	Square	Tin	All	Black	2.54 mm	0.1 in	Thermoplastic	Surface Mount Right Angle	0.1 in	2.54 mm	Push-Pull	Unshrouded	78.7 µin	2 µm	Pick and Place	Male Pin	Copper Alloy	2	Board to Board Cable	6.35 mm	0.25 in	4	Header	UL94 V-0	0.23 in		Solder	5.84 mm
Amphenol ICC (FCI) 10118084-402-08LF	Square	Tin	All	Black	2.54 mm	0.1 in	Thermoplastic	Surface Mount Right Angle	0.1 in	2.54 mm	Push-Pull	Unshrouded	78.7 µin	2 µm		Male Pin	Copper Alloy	2	Board to Board Cable	6.35 mm	0.25 in	8	Header	UL94 V-0	0.318 "	8.08 mm	Solder
Amphenol ICC (FCI) 10118084-401A08LF	Square	Tin	All	Black	2.54 mm	0.1 in	Thermoplastic	Surface Mount Right Angle	0.1 in	2.54 mm	Push-Pull	Unshrouded	78.7 µin	2 µm	Pick and Place	Male Pin	Copper Alloy	2	Board to Board Cable	6.35 mm	0.25 in	8	Header	UL94 V-0	0.23 in		Solder	5.84 mm
Amphenol ICC (FCI) 10118084-401A10LF	Square	Tin	All	Black	2.54 mm	0.1 in	Thermoplastic	Surface Mount Right Angle	0.1 in	2.54 mm	Push-Pull	Unshrouded	78.7 µin	2 µm	Pick and Place	Male Pin	Copper Alloy	2	Board to Board Cable	6.35 mm	0.25 in	10	Header	UL94 V-0	0.23 in		Solder	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5800	$ 0.35

Description

General part information

10118084 Series

Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
