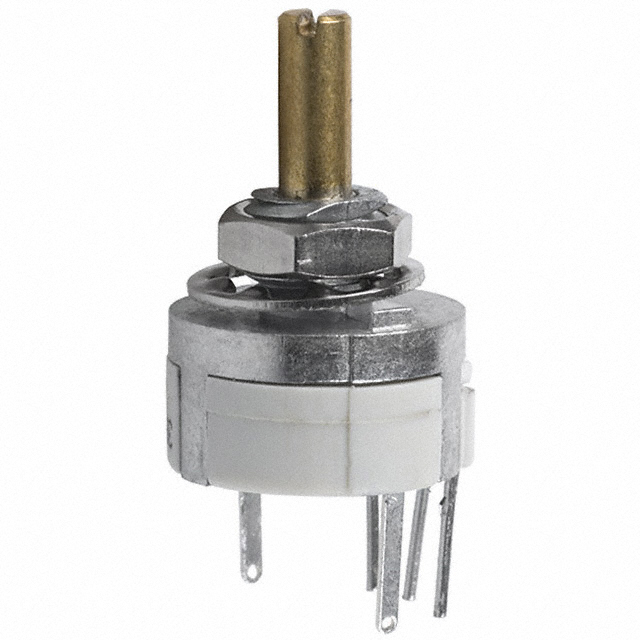

39SA-1RB-503
ActiveBourns Inc.
POT 50K OHM 1/4W PLASTIC LINEAR
39SA-1RB-503
ActiveBourns Inc.
POT 50K OHM 1/4W PLASTIC LINEAR
Description
General part information
39SA Series
50k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | 39SA-1RB-503 |
|---|---|
| Actuator Diameter | 3.175 mm |
| Actuator Length | 0.5 in |
| Actuator Type | Slotted |
| Adjustment Type | Top Adjustment |
| Built in Switch | Rotary, SPST |
| Bushing Thread | 1/4-28 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 50 kOhm |
| Resistive Material | Conductive Plastic |
| Rotation | 270 ° |
| Size - Body Diameter | 0.512 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | PC Pins |
| Tolerance | 20 % |
