940-SP-360808-A161

Active

BEL MAGNETIC SOLUTIONS

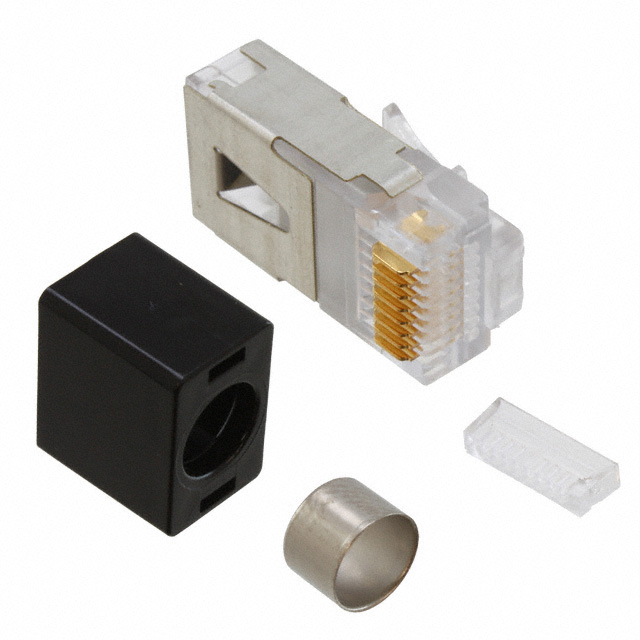

CONN MOD PLUG 8P8C SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Product Change Notice EN

940-SP-360808-A161

Active

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 8P8C SHIELDED

Deep-Dive with AI

DocumentsDrawing EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	940-SP-360808-A161

Cable Type	Flat Oval Cable, Solid or Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.5 A
Features	Molded Boot
Housing Material	Polycarbonate (PC)
Length	26.57 mm
Length	1.046 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shield Material	Brass
Shielding	Shielded
Termination	IDC
Voltage Rating	150 VDC

940-SP-36 Series

Part	Contact Material	Shielding	Length	Length	Number of Positions/Contacts	Termination	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Shield Material	Housing Material	Contact Finish	Cable Type	Voltage Rating	Connector Type	Color	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Wire Gauge [Min]	Wire Gauge [Max]
BEL MAGNETIC SOLUTIONS 940-SP-360808-A161	Phosphor Bronze	Shielded	26.57 mm	1.046 in	8p8c (RJ45 Ethernet)	IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Molded Boot
BEL MAGNETIC SOLUTIONS 940-SP-361010-RMK4-A161	Phosphor Bronze	Shielded	26.57 mm	1.046 in		IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Keyed Molded Boot	10	10
BEL MAGNETIC SOLUTIONS 940-SP-360606-A151	Phosphor Bronze	Shielded	26.57 mm	1.046 in	6p6c (RJ11 RJ12 RJ14 RJ25)	IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Molded Boot
BEL MAGNETIC SOLUTIONS 940-SP-360808-A218	Phosphor Bronze	Shielded	34.16 mm	1.345 "	8p8c (RJ45 Ethernet)	IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Molded Boot
BEL MAGNETIC SOLUTIONS 940-SP-361010-A218	Phosphor Bronze	Shielded	32.66 mm	1.286 in		IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Molded Boot	10	10
BEL MAGNETIC SOLUTIONS 940-SP-360808-FS-A92-B1000	Copper Alloy	Shielded			8p8c (RJ45 Ethernet)	IDC	1.5 A			Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug					24 AWG	28 AWG
BEL MAGNETIC SOLUTIONS 940-SP-361010-RMK4-A108	Phosphor Bronze	Shielded	26.57 mm	1.046 in		IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Keyed Molded Boot	10	10
BEL MAGNETIC SOLUTIONS 940-SP-360808-A217	Phosphor Bronze	Shielded	24.13 mm	0.95 "	8p8c (RJ45 Ethernet)	IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear
BEL MAGNETIC SOLUTIONS 940-SP-360808-031-A108	Phosphor Bronze	Shielded	26.57 mm	1.046 in	8p8c (RJ45 Ethernet)	IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Molded Boot
BEL MAGNETIC SOLUTIONS 940-SP-360606-A152	Phosphor Bronze	Shielded	26.57 mm	1.046 in	6p6c (RJ11 RJ12 RJ14 RJ25)	IDC	1.5 A	50 µin	1.27 µm	Brass	Polycarbonate (PC)	Gold	Flat Oval Cable Solid or Stranded Wires	150 VDC	Plug	Translucent - Clear	Molded Boot

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.75
		10	$ 1.52
		100	$ 1.36
		1000	$ 0.97
		5000	$ 0.86
		10000	$ 0.84
Newark	Each	1	$ 1.77
		10	$ 1.61
		25	$ 1.51
		50	$ 1.44
		100	$ 1.38
		250	$ 1.25
		500	$ 1.15
		1000	$ 0.98

Description

General part information

940-SP-36 Series

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded IDC
