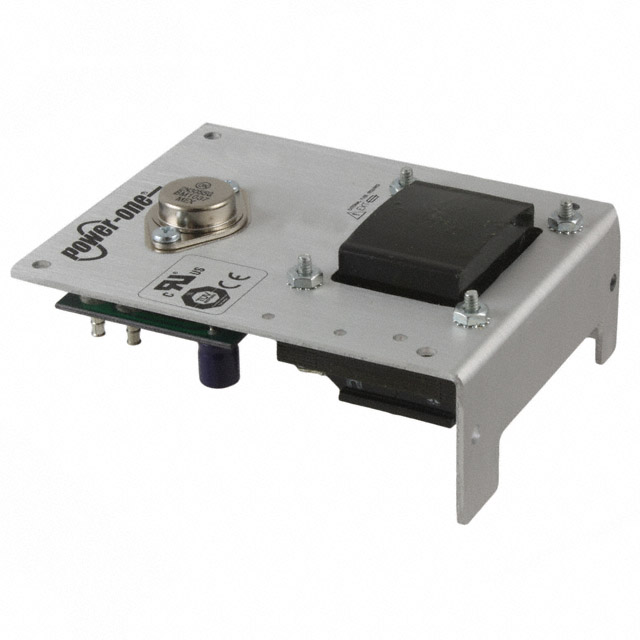

HAD12-0.4-AG

Active

Bel Power Solutions

AC/DC CONVERTER +/-12V 10W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER +/-12V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	HAD12-0.4-AG

Applications	ITE (Commercial)
Current - Output 1	400 mA
Current - Output 2	400 mA
Efficiency	55 %
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Power (Watts)	10 W
Size / Dimension [x]	4.87 "
Size / Dimension [x]	123.7 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	53.3 mm
Size / Dimension [z]	2.1 "
Type	Linear
Voltage - Input	240 VAC, 120 VAC, 220 VAC, 230 VAC, 100 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

AC/DC CONVERTER +/-12V 10W

Part	Voltage - Isolation	Features	Type	Mounting Type	Voltage - Output 1	Applications	Power (Watts)	Current - Output 2	Voltage - Output 2	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input	Efficiency	Current - Output 1
Bel Power Solutions HAD12-0.4-AG	3000 V	Adjustable Output, Remote Sense	Linear	Chassis Mount	12 V	ITE (Commercial)	10 W	400 mA	-12 V	2	53.3 mm	101.6 mm	4.87 "	4 "	2.1 "	123.7 mm	100 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC	55 %	400 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear AC DC Converters 2 Output 12V -12V 100, 120, 220, 230, 240 VAC Input
