5382-4SG-530

Active

Conxall/Switchcraft

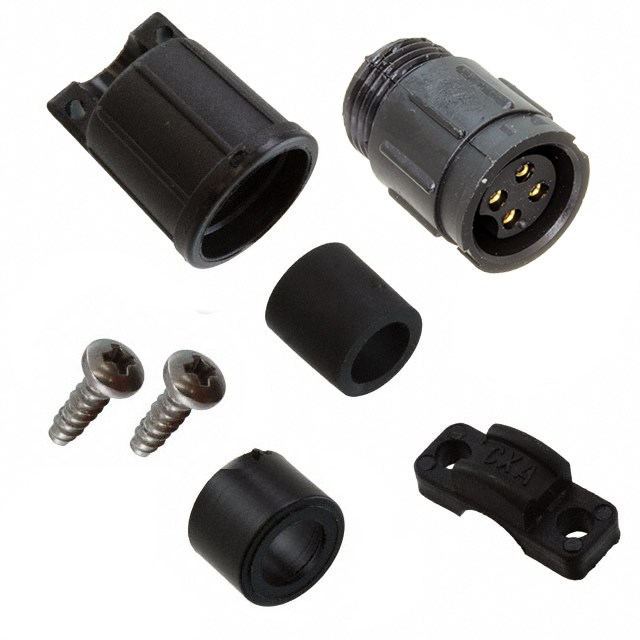

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5382-4SG-530

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.49

Description

General part information

5382-4SG Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5382-4SG-530	5382-4SG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.32 in	0.23 - 0.32 in
Cable Opening [Max] [diameter]	8.13 mm	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.3 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

5382-4SG Series

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Number of Positions	Backshell Material, Plating	Fastening Type	Contact Finish - Mating	Features	Connector Type	Primary Material	Orientation	Ingress Protection	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shielding	Mounting Type	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 5382-4SG-530	7.62 mm	0.32 in	8.13 mm	0.3 in	4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell, Cable Clamp	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass
Conxall/Switchcraft 5382-4SG-515					4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell, Cable Clamp	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5382-4SG-330	7.62 mm	0.32 in	8.13 mm	0.3 in	4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass
Conxall/Switchcraft 5382-4SG-518					4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell, Cable Clamp	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass			4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5382-4SG-315					4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5382-4SG-521	5.33 mm	0.23 in		0.21 in	4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell, Cable Clamp	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass							5.84 mm
Conxall/Switchcraft 5382-4SG-321	5.33 mm	0.23 in		0.21 in	4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass							5.84 mm
Conxall/Switchcraft 5382-4SG-324	6.1 mm	0.27 in		0.24 in	4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass							6.86 mm
Conxall/Switchcraft 5382-4SG-328	7.11 mm	0.29 in		0.28 in	4	Nylon, Polyamide (PA)	Bayonet Lock	Gold	Backshell	Receptacle, Female Sockets	Plastic	Keyed	Weathertight	600 V	-40 °C	115 °C	Black	Unshielded	Free Hanging (In-Line)	Brass							7.37 mm
