0995-0-00-34-00-00-03-0

Active

Mill-Max Manufacturing Corp.

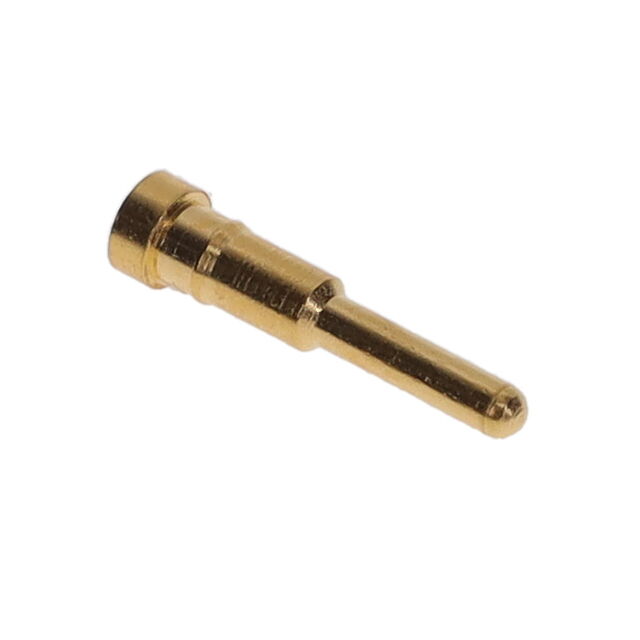

CONN PC PIN CIRC 0.036DIA GOLD

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PC PIN CIRC 0.036DIA GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	0995-0-00-34-00-00-03-0

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Brass Alloy
Flange Diameter [diameter]	1.83 mm
Flange Diameter [diameter]	0.072 in
Insulation	Non-Insulated
Length - Above Flange [x]	0.281 in
Length - Above Flange [x]	7.14 mm
Length - Overall	7.95 mm
Length - Overall	0.313 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Mounting Type	Through Hole
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Press-Fit

Part	Terminal Style	Length - Overall	Length - Overall	Insulation	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Length - Above Flange [x]	Length - Above Flange [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Terminal Type
Mill-Max Manufacturing Corp. 0995-0-00-34-00-00-03-0	Single End	7.95 mm	0.313 in	Non-Insulated	Press-Fit	0.057 "	1.45 mm	Through Hole	0.281 in	7.14 mm	Gold	50 µin	1.27 µm	1.83 mm	0.072 in	Brass Alloy	PC Pin
Mill-Max Manufacturing Corp. 0995-0-00-21-00-00-03-0	Single End	7.95 mm	0.313 in	Non-Insulated	Press-Fit	0.057 "	1.45 mm	Through Hole	0.281 in	7.14 mm	Gold	20 µin	0.51 µm	1.83 mm	0.072 in	Brass Alloy	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PC Pin Terminal Connector Through Hole Gold 0.036" (0.91mm) Dia

Technical documentation and resources

No documents available
