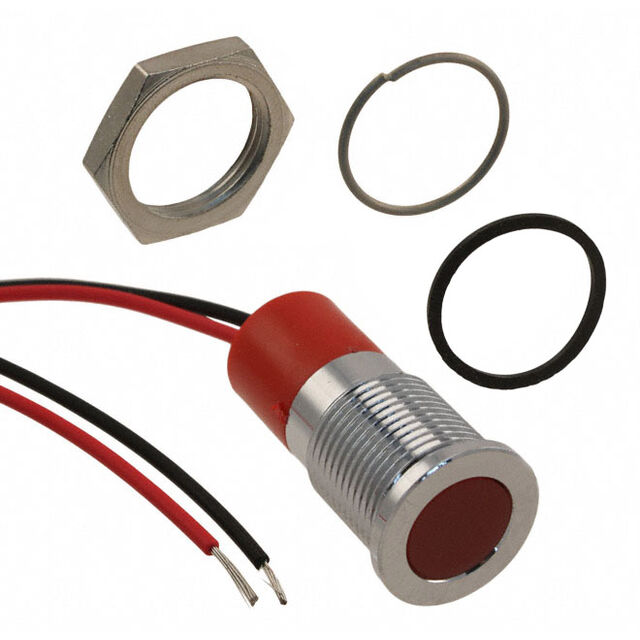

Q14F3CXXR12E
ActiveAPEM
LED PM INDICATOR FLUSH RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q14F3CXXR12E
ActiveAPEM
LED PM INDICATOR FLUSH RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q14F3CXXR12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 10 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions | 13.97 mm |
| Panel Cutout Dimensions | 0.55 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 18.79 | |
| 25 | $ 13.79 | |||
| 100 | $ 12.57 | |||
| 500 | $ 11.58 | |||
Description
General part information
Q14F3CXXR Series
LED Panel Indicator Red Diffused 100° 12V 20mA Wire Leads - 7.87" (200.00mm)
