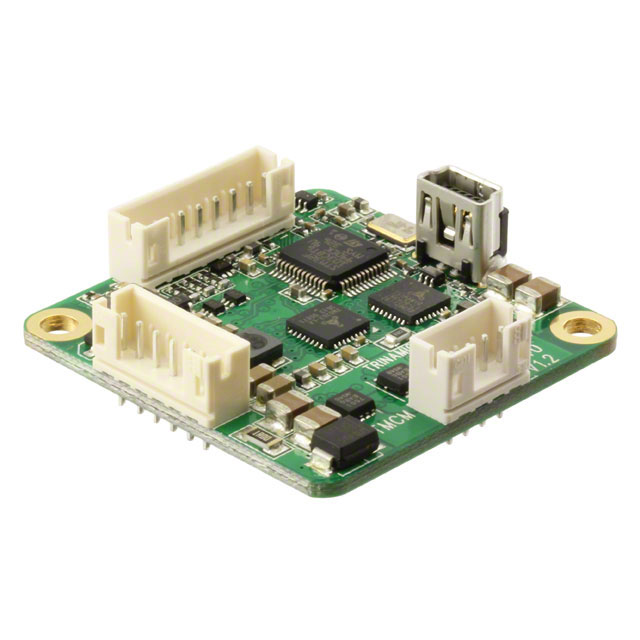

TMCM-1140-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 2.8A 9-28V LOAD

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

STEPPER DRIVER 2.8A 9-28V LOAD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMCM-1140-CANOPEN	TMCM-1140 Series

Accessory Type	-	Cable Assembly
Control / Drive Type	Bipolar, Stepper	Bipolar, Stepper
Current - Output	2.8 A	2.8 A
For Use With/Related Products	-	TMCM-1140 Series
Interface	-	Step / Direction, RS-485, USB
Motor Type	Stepper	Stepper
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Type	Board	Board
Usage	-	Motor
Voltage - Load [Max]	28 V	28 V
Voltage - Load [Min]	9 V	9 V
Voltage - Supply [Max]	24 V	24 V
Voltage - Supply [Min]	12 V	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 162.73

STEPPER DRIVER 2.8A 9-28V LOAD

Part	Mounting Type	Control / Drive Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Motor Type	Current - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Load [Min]	Voltage - Load [Max]	For Use With/Related Products	Usage	Accessory Type	Interface
Analog Devices Inc./Maxim Integrated TMCM-1140-CANOPEN	Chassis Mount	Bipolar, Stepper	Board	50 °C	-30 ░C	Stepper	2.8 A	24 V	12 V	9 V	28 V
Analog Devices Inc./Maxim Integrated TMCM-1140-CABLE												TMCM-1140 Series	Motor	Cable Assembly
Analog Devices Inc./Maxim Integrated TMCM-1140-TMCL	Chassis Mount	Bipolar, Stepper	Board	50 °C	-30 ░C	Stepper	2.8 A	24 V	12 V	9 V	28 V				RS-485, Step / Direction, USB

General part information

Stepper, Bipolar 12 ~ 24VDC Supply 2.8A 9 ~ 28V Load

Technical documentation and resources

No documents available
