EN3P15FRAPCBW
ActiveSwitchcraft Inc.

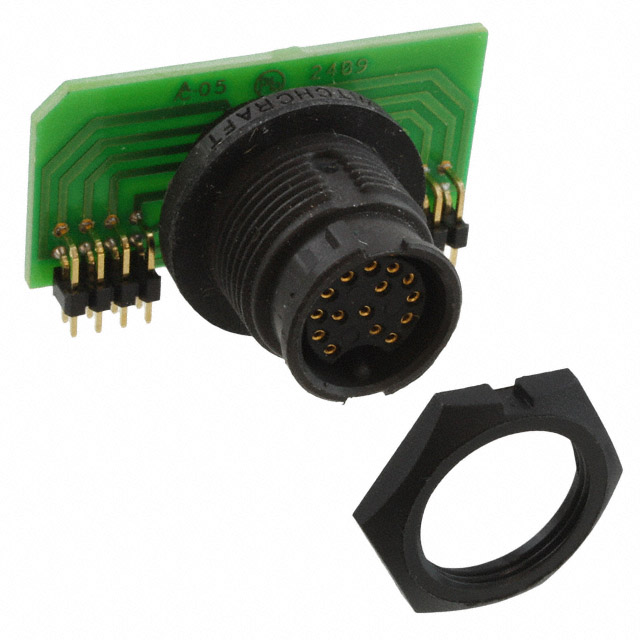

CONN RCPT FMALE 15POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P15FRAPCBW
ActiveSwitchcraft Inc.
CONN RCPT FMALE 15POS SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P15FRAPCBW | EN3P15 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 | 15 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Circuit Board, Solder, Crimp, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P15 Series
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Contact Finish - Mating | Color | Mounting Feature | Current Rating (Amps) | Connector Type | Shielding | Number of Positions | Voltage Rating | Primary Material | Contact Material | Orientation | Insert Material | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Material Flammability Rating | Fastening Type | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P15M26X | Gold | Black | Bulkhead - Front Side Nut | 3 A | Male Pins, Receptacle | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | ||
Switchcraft Inc. EN3P15MRAPCBW | Gold | Black | Bulkhead - Front Side Nut | 2 A | Male Pins, Receptacle | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
Switchcraft Inc. EN3P15F26CX | Gold | Black | Bulkhead - Front Side Nut | 3 A | Receptacle, Female Sockets | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | Crimp | |
Switchcraft Inc. EN3P15F26X | Gold | Black | Bulkhead - Front Side Nut | 3 A | Receptacle, Female Sockets | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | ||
Switchcraft Inc. EN3P15MRAPCBN | Gold | Black | Bulkhead - Front Side Nut | 2 A | Male Pins, Receptacle | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
Switchcraft Inc. EN3P15F26SX | Gold | Black | Bulkhead - Front Side Nut | 3 A | Receptacle, Female Sockets | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | ||
Switchcraft Inc. EN3P15FRAPCBW | Gold | Black | Bulkhead - Front Side Nut | 2 A | Receptacle, Female Sockets | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | Panel Mount, Right Angle, Through Hole | Circuit Board, Solder |
Switchcraft Inc. EN3P15M26PX | Gold | Black | Bulkhead - Front Side Nut | 3 A | Male Pins, Receptacle | Unshielded | 15 | 250 VAC | Plastic | Copper Alloy | Keyed | Elastomer | IP66/IP68 | 65 °C | -40 °C | General Purpose, Instrumentation, Marine, Medical | UL94 V-0 | Bayonet Lock | Panel Mount, Through Hole | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.78 | |
| 10 | $ 20.73 | |||
Description
General part information
EN3P15 Series
15 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
