EN3P15MRAPCBW

Active

Switchcraft Inc.

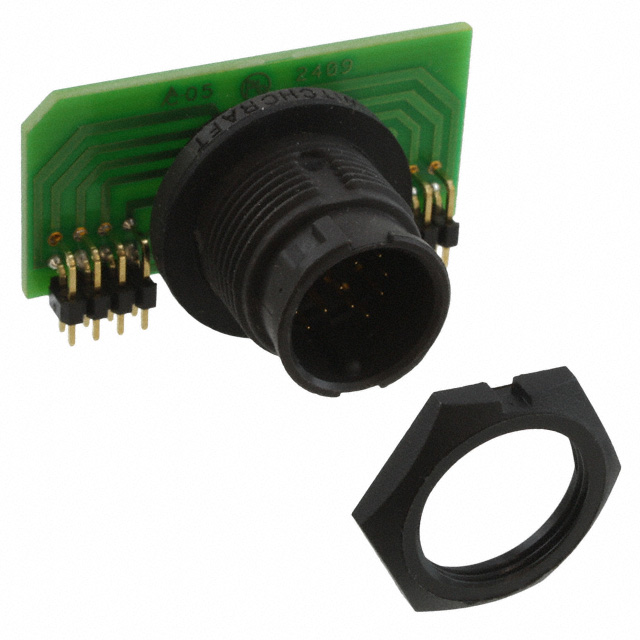

CONN RCPT MALE 15POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P15MRAPCBW

Active

Switchcraft Inc.

CONN RCPT MALE 15POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P15MRAPCBW	EN3P15 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	15	15
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder, Crimp, Solder
Voltage Rating	250 VAC	250 VAC

EN3P15 Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Contact Finish - Mating	Color	Mounting Feature	Current Rating (Amps)	Connector Type	Shielding	Number of Positions	Voltage Rating	Primary Material	Contact Material	Orientation	Insert Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Material Flammability Rating	Fastening Type	Mounting Type	Termination
Switchcraft Inc. EN3P15M26X	Gold	Black	Bulkhead - Front Side Nut	3 A	Male Pins, Receptacle	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock
Switchcraft Inc. EN3P15MRAPCBW	Gold	Black	Bulkhead - Front Side Nut	2 A	Male Pins, Receptacle	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
Switchcraft Inc. EN3P15F26CX	Gold	Black	Bulkhead - Front Side Nut	3 A	Receptacle, Female Sockets	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock		Crimp
Switchcraft Inc. EN3P15F26X	Gold	Black	Bulkhead - Front Side Nut	3 A	Receptacle, Female Sockets	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock
Switchcraft Inc. EN3P15MRAPCBN	Gold	Black	Bulkhead - Front Side Nut	2 A	Male Pins, Receptacle	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
Switchcraft Inc. EN3P15F26SX	Gold	Black	Bulkhead - Front Side Nut	3 A	Receptacle, Female Sockets	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock
Switchcraft Inc. EN3P15FRAPCBW	Gold	Black	Bulkhead - Front Side Nut	2 A	Receptacle, Female Sockets	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock	Panel Mount, Right Angle, Through Hole	Circuit Board, Solder
Switchcraft Inc. EN3P15M26PX	Gold	Black	Bulkhead - Front Side Nut	3 A	Male Pins, Receptacle	Unshielded	15	250 VAC	Plastic	Copper Alloy	Keyed	Elastomer	IP66/IP68	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	UL94 V-0	Bayonet Lock	Panel Mount, Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.25
		10	$ 15.63
		25	$ 14.80

Description

General part information

EN3P15 Series

15 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
