796984-8

Active

TE Connectivity AMP Connectors

TERM BLK 8P SIDE ENT 5.08MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLK 8P SIDE ENT 5.08MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	796984-8

Clamp Material - Plating	Brass - Nickel Plated
Color	Black
Contact Material - Plating [custom]	Brass - Tin Plated
Current	17.5 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	8
Screw Material - Plating	Brass - Nickel Plated
Screw Thread	M3
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Voltage	300 V
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

TERM BLK 8P SIDE ENT 5.08MM PCB

Part	Torque - Screw	Torque - Screw	Current	Wire Termination	Voltage	Clamp Material - Plating	Screw Thread	Number of Levels	Mating Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material - Plating [custom]	Positions Per Level	Features	Color	Pitch [x]	Pitch [x]	Screw Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity AMP Connectors 796984-8	0.79 Nm	7 Lb-In	17.5 A	Screw - Rising Cage Clamp	300 V	Brass - Nickel Plated	M3	2	Horizontal with Board	-40 °C	105 ░C	Through Hole	Brass - Tin Plated	8	Interlocking (Side)	Black	0.2 in	5.08 mm	Brass - Nickel Plated	30 AWG	12 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

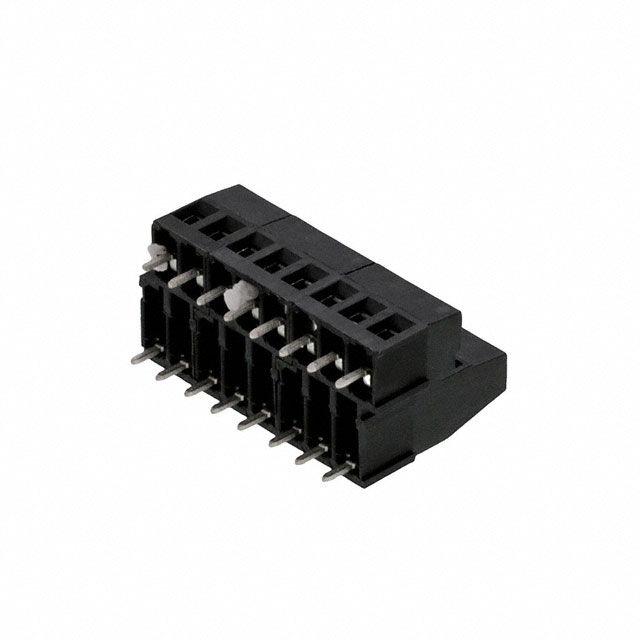

8 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
