SF1112-6035

Active

Amphenol SV Microwave

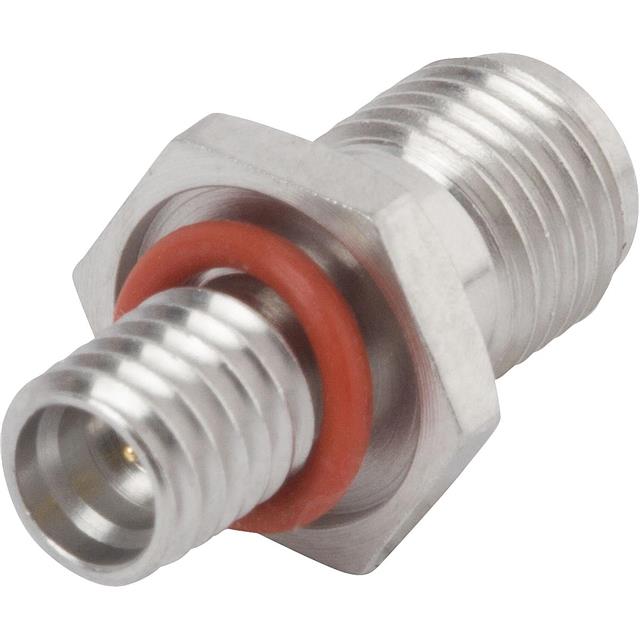

CONN ADAPT SMP PLUG TO SMA JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF1112-6035

Active

Amphenol SV Microwave

CONN ADAPT SMP PLUG TO SMA JACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF1112-6035

Adapter Series	SMA to SMP
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Full Detent
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Feature	Bulkhead
Style	Straight

SF1112 Series

Part	Body Material	Impedance	Adapter Type	Style	Mating Cycles	Features	Conversion Type	Center Contact Plating	Dielectric Material	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Fastening Type	Convert From (Adapter End)	Adapter Series	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Body Finish	Includes
Amphenol SV Microwave SF1112-6031	Stainless Steel	50 Ohms	Plug to Jack	Straight	1000	Smooth Bore	Between Series	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	2.92 mm	OS-2.9 Jack Female Socket	Snap-On Threaded	SMP Plug Male Pin	SMP to 2.92mm	Beryllium Copper	40 GHz
Amphenol SV Microwave SF1112-6144	Stainless Steel	50 Ohms	Plug to Jack	Straight	500		Between Series	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	2.92 mm	OS-2.9 Jack Female Socket	Bayonet Lock Threaded	SMP Plug Male Pin	SMP to 2.92mm	Beryllium Copper	40 GHz	-65 ░C	165 °C
Amphenol SV Microwave SF1112-6035	Stainless Steel	50 Ohms	Plug to Jack	Straight		Full Detent	Between Series	Gold	Polytetrafluoroethylene (PTFE)				Snap-On Threaded	Female Socket SMA Jack	SMA to SMP	Beryllium Copper	18 GHz			Bulkhead
Amphenol SV Microwave SF1112-6162	Stainless Steel	50 Ohms	Plug to Jack	Straight			Between Series	Gold	Polytetrafluoroethylene (PTFE)				Snap-On Threaded	Female Socket SMA Jack	SMA to SMP	Beryllium Copper	18 GHz	-65 ░C	165 °C	Bulkhead	Gold	1 Connector 1 Nut
Amphenol SV Microwave SF1112-6025	Stainless Steel	50 Ohms	Plug to Jack	Straight	500	Limited Detent	Between Series	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	2.92 mm	OS-2.9 Jack Female Socket	Snap-On Threaded	SMP Plug Male Pin	SMP to 2.92mm	Beryllium Copper	40 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 36.92
		10	$ 32.33
		25	$ 30.93
		50	$ 29.94
		100	$ 28.94
		250	$ 27.34

Description

General part information

SF1112 Series

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Plug, Male Pin 50 Ohms
