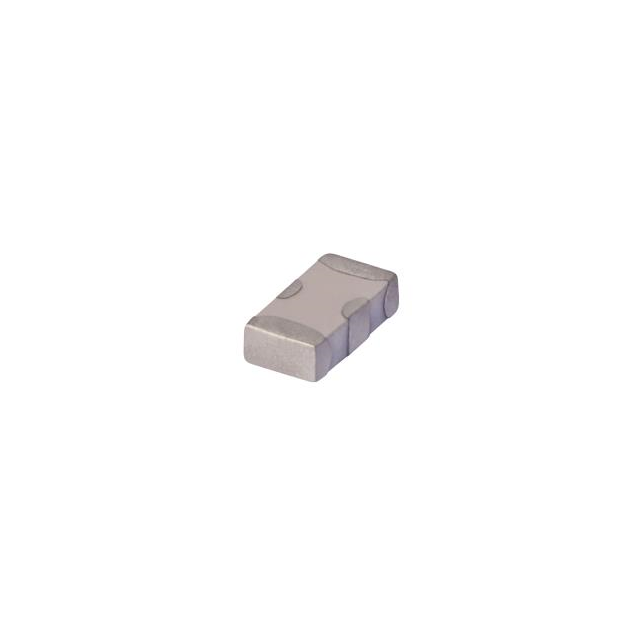

LFCN-120+
ActiveMINI-CIRCUITS
LTCC LOW PASS FILTER, DC - 120 M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LFCN-120+
ActiveMINI-CIRCUITS
LTCC LOW PASS FILTER, DC - 120 M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LFCN-120+ |
|---|---|
| Filter Type [custom] | Low Pass |
| Frequency | 120 MHz |
| Height (Max) | 0.95 mm |
| Height (Max) [Max] | 0.037 in |
| Insertion Loss | 1 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4 Lead |
| Package / Case | 1206 |
| Package / Case | 3216 Metric |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 3.96 | |
Description
General part information
LFCN-120 Series
120MHz Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 1dB 1206 (3216 Metric), 4 PC Pad
