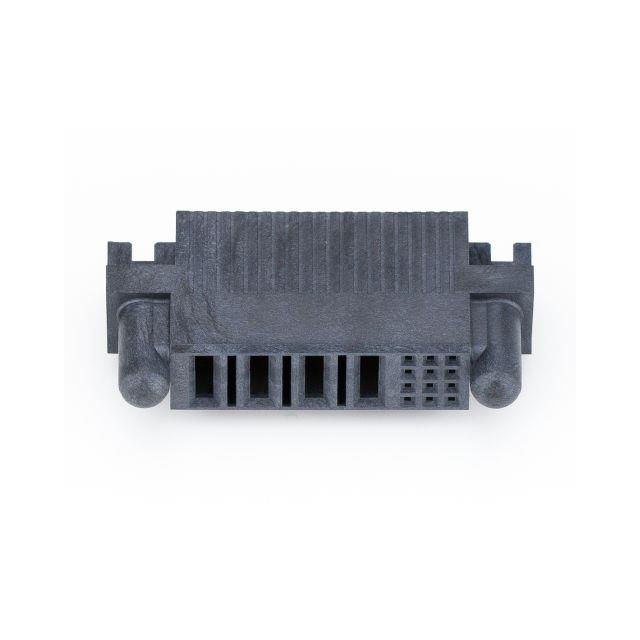

Specification	9391-A4S96CB30DA

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Post	80 µin
Contact Length - Post	0.135 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Features	Mating Guide
Insulation Color	Black
Insulation Height	0.47 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Style	Board
Termination	Solder

9391 Series

Part	Contact Finish - Post	Contact Finish - Mating	Contact Length - Mating	Pitch - Mating	Material Flammability Rating	Insulation Material	Contact Material	Style	Number of Positions	Contact Length - Post	Number of Rows	Contact Finish Thickness - Mating	Connector Type	Row Spacing - Mating	Contact Type	Insulation Height	Insulation Color	Contact Shape	Termination	Number of Positions Loaded	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Shrouding	Contact Finish Thickness - Post	Features	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)
Oupiin 9391-A3S96CB30PA	Tin	Gold	0.27 in	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Brass	Board	96	0.171 in	4	3 µin	Header	0.1 in	Male Pin	0.496 in	Black	Square	Press-Fit	All	Through Hole	-40 °C	105 °C	Shrouded - 4 Wall	80 µin
Oupiin 9391-A4S96CB30DA	Tin	Gold		0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Board	96	0.135 in	4	3 µin	Receptacle	0.1 in	Female Socket	0.47 in	Black	Square	Solder	All	Right Angle Through Hole	-40 °C	105 °C		80 µin	Mating Guide
Oupiin 9391-A1S08P02CB30DLA-HP	Tin	Gold	0.27 in		UL94 V-0	Liquid Crystal Polymer (LCP)	Brass	Board		0.135 in		3 µin	Header		Male Pin	0.574 in	Black	Square	Solder	All	Right Angle Through Hole	-40 °C	105 °C	Shrouded - 4 Wall		Board Lock	8	2	10
