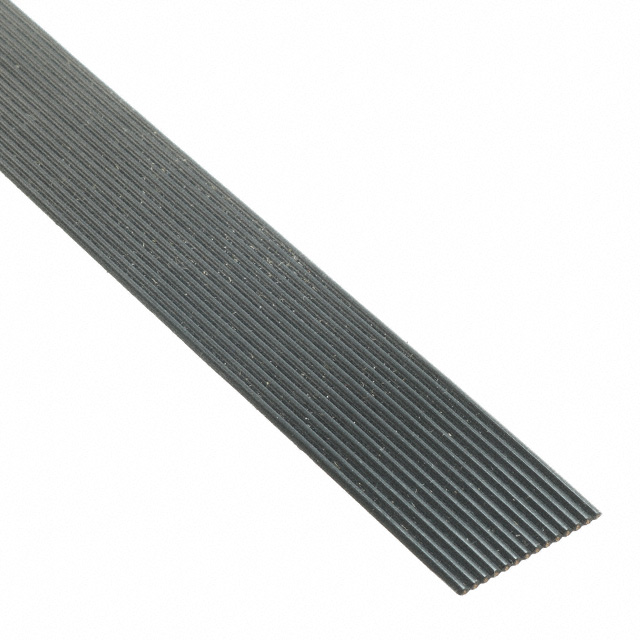

C3319/14 100
Active3M (TC)
CBL RIBN 14COND 0.05 BLACK 25'
Deep-Dive with AI
Search across all available documentation for this part.
C3319/14 100
Active3M (TC)
CBL RIBN 14COND 0.05 BLACK 25'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C3319/14 100 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper Alloy, Silver Coated |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 40 AWG |
| Features | Zippable |
| First Conductor Mark | Red |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 15.24 m, 304.8 mm, 7.62 m |
| Length | 50 ft, 1 ft, 25 ft |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 14 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.89 mm |
| Ribbon Thickness | 0.035 in |
| Ribbon Width [x] | 0.7 in |
| Ribbon Width [x] | 17.78 mm |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 143.74 | |
| 1 | $ 9.66 | |||
| 1 | $ 252.29 | |||
| 5 | $ 205.47 | |||
| 5 | $ 7.99 | |||
| 5 | $ 117.73 | |||
| 10 | $ 107.97 | |||
| 10 | $ 7.37 | |||
| 10 | $ 188.57 | |||
| 25 | $ 172.96 | |||
| 25 | $ 6.61 | |||
| 25 | $ 95.61 | |||
| 50 | $ 87.16 | |||
| 50 | $ 6.09 | |||
| 100 | $ 5.60 | |||
| 100 | $ 86.51 | |||
| Spool | 100 | $ 5.55 | ||
| 300 | $ 4.88 | |||
| 500 | $ 4.43 | |||
| 1000 | $ 4.15 | |||
Description
General part information
C3319 Series
Flat Ribbon Cable Black 14 Conductors 0.050" (1.27mm) Flat Cable 25.0' (7.62m)
