ACDBMT160-HF

Active

Comchip Technology

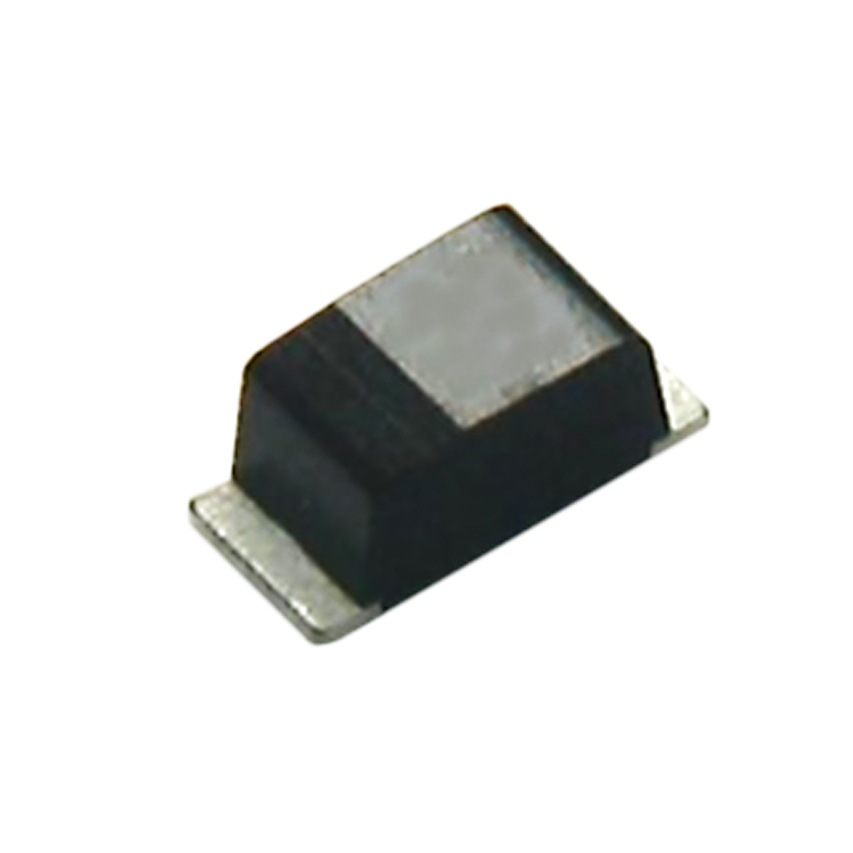

DIODE SCHOTTKY 60V 1A SOD123H

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 60V 1A SOD123H

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBMT160-HF

Capacitance @ Vr, F	120 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	500 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123H
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123H
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	700 mV

DIODE SCHOTTKY 60V 1A SOD123H

Part	Speed	Capacitance @ Vr, F	Grade	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Qualification	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Technology
Comchip Technology ACDBMT160-HF	200 mA, 500 ns	120 pF	Automotive	500 µA	SOD-123H	150 °C	-55 °C	AEC-Q101	700 mV	Surface Mount	SOD-123H	60 V	1 A	Schottky

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 60 V 1A Surface Mount SOD-123H
