842-056-541-204

Active

EDAC Inc.

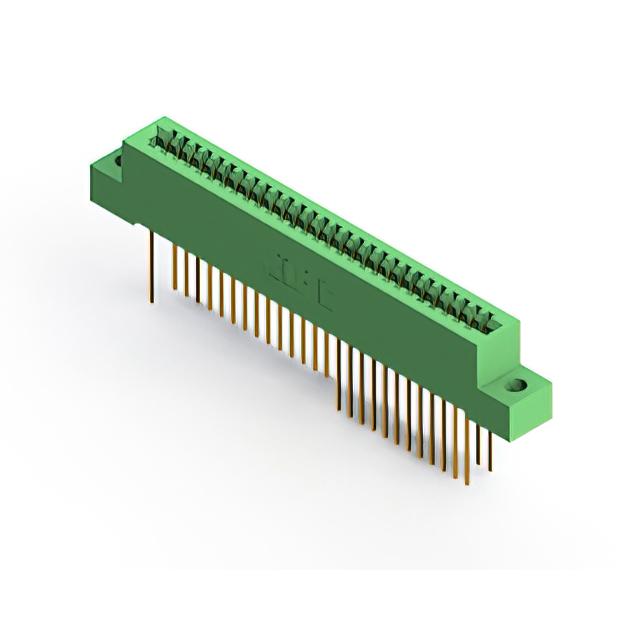

CONN EDGE DUAL FMALE 56POS 0.100

842-056-541-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 56POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

842-056 Series

56 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	842-056-541-204

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	56, 28
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

842-056 Series

...

Part	Termination	Pitch	Card Thickness (Min)	Card Thickness (Max)	Gender	Number of Positions	Contact Finish	Flange Feature Diameter	Flange Feature	Card Type	Color	Read Out	Contact Finish Thickness	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Number of Rows	Mounting Type	Termination Rows	Material - Insulation	Features
EDAC Inc. 842-056-541-204	Wire Wrap	0.1 in	0.054 in	0.07 in	Female	28 56	Gold	0.156 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Green	Dual	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	2	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 842-056-560-202	Solder	0.1 in	0.054 in	0.07 in	Female	28 56	Gold	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Green	Dual	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	2	Board Edge Straddle Mount	2 rows	DAP Diallyl Phthalate	Card Extender
EDAC Inc. 842-056-555-212	Solder	0.1 in	0.054 in	0.07 in	Female	28 56	Gold	0.128 in	Flush Mount Side Opening Unthreaded	Dual Edge Non Specified	Green	Dual	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	2	Board Edge Straddle Mount	2 rows	DAP Diallyl Phthalate	Card Extender
EDAC Inc. 842-056-540-101	Wire Wrap	0.1 in	0.054 in	0.07 in	Female	56	Gold			Non Specified Single Edge	Green	Single	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	1	Through Hole	1 rows	DAP Diallyl Phthalate
EDAC Inc. 842-056-556-208	Solder	0.1 in	0.054 in	0.07 in	Female	28 56	Gold		4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Green	Dual	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	2	Board Edge Straddle Mount	2 rows	DAP Diallyl Phthalate	Card Extender
EDAC Inc. 842-056-541-207	Wire Wrap	0.1 in	0.054 in	0.07 in	Female	28 56	Gold		Flush Mount M3 Threaded Insert Top Opening	Dual Edge Non Specified	Green	Dual	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	2	Through Hole	2 rows	DAP Diallyl Phthalate
EDAC Inc. 842-056-558-101	Solder	0.1 in	0.054 in	0.07 in	Female	56	Gold			Non Specified Single Edge	Green	Single	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	1	Right Angle Through Hole	1 rows	DAP Diallyl Phthalate
EDAC Inc. 842-056-556-202	Solder	0.1 in	0.054 in	0.07 in	Female	28 56	Gold	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Green	Dual	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	2	Board Edge Straddle Mount	2 rows	DAP Diallyl Phthalate	Card Extender
EDAC Inc. 842-056-559-102	Solder	0.1 in	0.054 in	0.07 in	Female	56	Gold	0.128 in	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	Green	Single	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	1	Right Angle Through Hole	1 rows	DAP Diallyl Phthalate
EDAC Inc. 842-056-540-102	Wire Wrap	0.1 in	0.054 in	0.07 in	Female	56	Gold	0.128 in	Flush Mount Top Opening Unthreaded	Non Specified Single Edge	Green	Single	10 Ąin	Cantilever	125 °C	-40 °C	Copper Alloy	1	Through Hole	1 rows	DAP Diallyl Phthalate

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

842-056-541-204 | Datasheet
