E6D40065G

Active

Wolfspeed

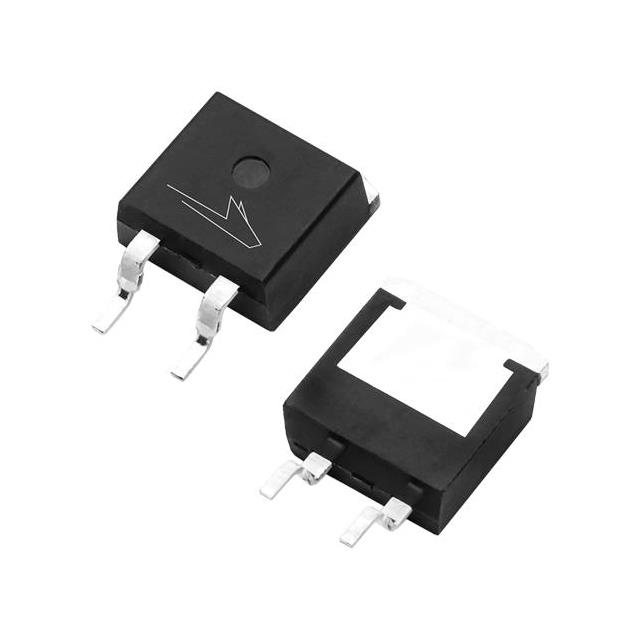

DIODE SIC 650V 131A TO263

Search across all available documentation for this part.

Active

Wolfspeed

DIODE SIC 650V 131A TO263

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 650 V 131A Surface Mount TO-263-2

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	E6D40065G	E6D40065 Series

Capacitance @ Vr, F	2485 pF	2485 pF
Current - Average Rectified (Io)	131 A	131 A
Current - Average Rectified (Io) (per Diode)	-	63 A
Current - Reverse Leakage @ Vr	150 µA	150 - 200 µA
Diode Configuration	-	1 Pair Common Cathode
Grade	-	Automotive
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-55 C	-55 C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-247-3, TO-247-2
Qualification	-	AEC-Q101
Reverse Recovery Time (trr)	0 ns	0 ns
Speed	No Recovery Time	No Recovery Time
Supplier Device Package	TO-263-2	TO-263-2, TO-247-3, TO-247-2
Technology	SiC (Silicon Carbide) Schottky	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V	650 V
Voltage - Forward (Vf) (Max) @ If	1.5 V	1.5 V

DIODE SIC 650V 131A TO263

Part	Supplier Device Package	Package / Case	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Mounting Type	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Qualification	Grade
Wolfspeed E6D40065G	TO-263-2	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	No Recovery Time	1.5 V	150 µA	SiC (Silicon Carbide) Schottky	175 ░C	-55 C	131 A	Surface Mount	2485 pF	650 V
Wolfspeed E6D40065D	TO-247-3	TO-247-3	No Recovery Time	1.5 V	200 µA	SiC (Silicon Carbide) Schottky	175 ░C	-55 C		Through Hole		650 V	1 Pair Common Cathode	63 A
Wolfspeed E6D40065H	TO-247-2	TO-247-2	No Recovery Time	1.5 V	150 µA	SiC (Silicon Carbide) Schottky	175 ░C	-55 C		Through Hole		650 V			AEC-Q101	Automotive
