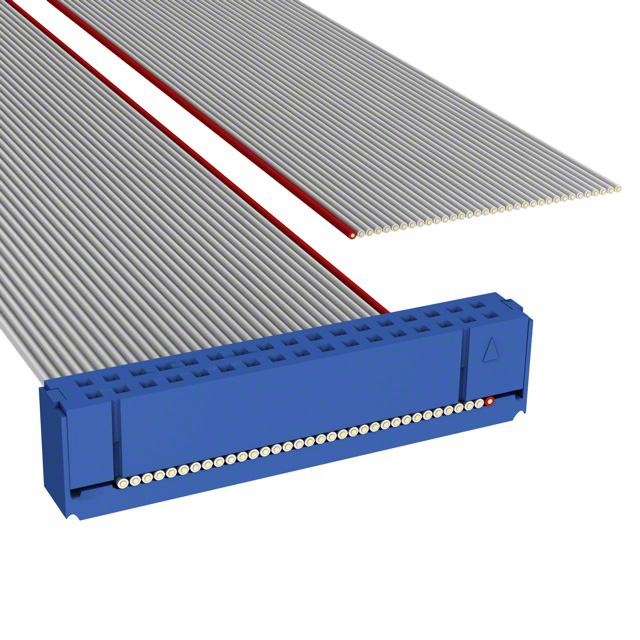

C1AXG-3436G

Active

CW Industries

IDC CABLE - CSC34G/AE34G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC34G/AE34G/X

Technical Specifications

Parameters and characteristics commom to parts in this series

IDC CABLE - CSC34G/AE34G/X

Part	Cable Termination	Connector Type	Pitch - Cable	Pitch - Cable	Number of Positions	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length [x]	Length [x]	Shielding	Color
CW Industries C1AXG-3436G	IDC	Socket to Cable	0.05 "	1.27 mm	34	0.1 in	2.54 mm	2	10 Áin	0.25 Ám	Gold	3 ft	914.4 mm	Unshielded
CW Industries C1AXG-3436M	IDC	Socket to Cable	0.05 "	1.27 mm	34	0.1 in	2.54 mm	2	10 Áin	0.25 Ám	Gold	3 ft	914.4 mm	Unshielded	Multiple, Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
