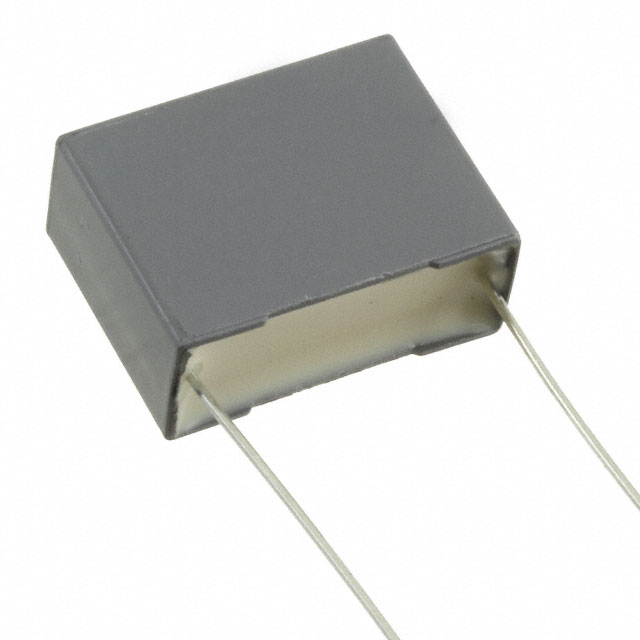

R474N32205001K

Active

KEMET

CAP FILM 0.22UF 10% 1KVDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

R474N32205001K

Active

KEMET

CAP FILM 0.22UF 10% 1KVDC RADIAL

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R474N32205001K

Applications	EMI, RFI Suppression, Automotive
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension [x]	26.5 mm
Size / Dimension [x]	1.043 in
Size / Dimension [y]	0.433 in
Size / Dimension [y]	11 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	440 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

R474N Series

Part	Ratings	Termination	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Package / Case	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Applications	Tolerance	Voltage Rating - AC	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R474N3150JHA1M	AEC-Q200 X1	PC Pins	0.394 in	1.043 in	10 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	18.6 mm	0.732 in	1 kVDC	1 kV	Automotive EMI RFI Suppression	20 %	440 V	0.15 ÁF
KEMET R474N333000A1K	AEC-Q200 X1	PC Pins	0.512 in	1.043 in	13 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	22.1 mm	0.87 in	1 kVDC	1 kV	Automotive EMI RFI Suppression	10 %	440 V	0.33 µF
KEMET R474N3330CK01K	AEC-Q200 X2	PC Pins	0.512 in	1.043 in	13 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	22.1 mm	0.87 in	1 kVDC	1 kV	Automotive EMI RFI Suppression	10 %	440 V	0.33 µF
KEMET R474N3330CK01M	AEC-Q200 X2	PC Pins	0.512 in	1.043 in	13 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	22.1 mm	0.87 in	1 kVDC	1 kV	Automotive EMI RFI Suppression	20 %	440 V	0.33 µF
KEMET R474N32205001K	AEC-Q200 X2	PC Pins	0.433 in	1.043 in	11 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in			1 kVDC	1 kV	Automotive EMI RFI Suppression	10 %	440 V	0.22 µF
KEMET R474N3330CKA1K	AEC-Q200 X1	PC Pins	0.512 in	1.043 in	13 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	22.1 mm	0.87 in	1 kVDC	1 kV	Automotive EMI RFI Suppression	10 %	440 V	0.33 µF
KEMET R474N24705001K	AEC-Q200 X2	PC Pins	0.236 in	1.043 in	6 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in			1 kVDC	1 kV	Automotive EMI RFI Suppression	10 %	440 V		0.594 in	15.1 mm
KEMET R474N3330JB01K	AEC-Q200 X2	PC Pins	0.512 in	1.043 in	13 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	22.1 mm	0.87 in	1 kVDC	1 kV	Automotive EMI RFI Suppression	10 %	440 V	0.33 µF
KEMET R474N322000A1M	AEC-Q200 X1	PC Pins	0.433 in	1.043 in	11 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in			1 kVDC	1 kV	Automotive EMI RFI Suppression	20 %	440 V	0.22 µF
KEMET R474N315000A1M	AEC-Q200 X1	PC Pins	0.394 in	1.043 in	10 mm	26.5 mm	-40 °C	110 °C	Through Hole	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	18.6 mm	0.732 in	1 kVDC	1 kV	Automotive EMI RFI Suppression	20 %	440 V	0.15 ÁF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.48
		10	$ 1.11
		50	$ 1.02
		250	$ 0.78
		500	$ 0.66
		1000	$ 0.59
		2500	$ 0.55
		5000	$ 0.53
Newark	Each	10	$ 0.96
		25	$ 0.92
		50	$ 0.88
		100	$ 0.83
		500	$ 0.78
		1000	$ 0.73
		2500	$ 0.68

Description

General part information

R474N Series

0.22 µF Film Capacitor 440V 1000V (1kV) Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Manufacturer Catalogue EN

Datasheet
