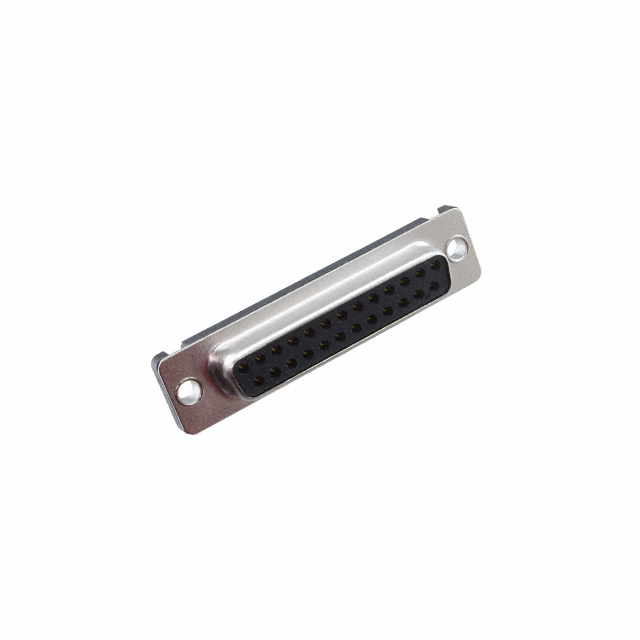

XM3F-2520

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXM2x,XM3x Series Overview Datasheet +1

XM3F-2520

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 25POS VERT SLDR

Deep-Dive with AI

DocumentsXM2x,XM3x Series Overview Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 10.76

Description

General part information

XM3F Series

25 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

XM2x,XM3x Series Overview

Datasheet

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM3F-2520	XM3F Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	16 µin	16 µin
Contact Finish Thickness	0.41 µm	0.41 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded	Shielded, Board Lock
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	9 - 37
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	DB, B	DE, E, DB, B
Shell Size, Connector Layout [custom]	3	1 - 3
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

XM3F Series

CONN D-SUB RCPT 37POS VERT SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Positions	Material Flammability Rating	Shell Size, Connector Layout	Mounting Type	Dielectric Material	Connector Type	Connector Style	Contact Type	Flange Feature	Current Rating (Amps)	Number of Rows	Contact Material	Termination	Contact Finish	Shell Material, Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Omron Electronics Inc-EMC Div XM3F-3720	105 ░C	-55 °C	300 VDC	37	UL94 V-0	4 (DC, C)	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle, Female Sockets	D-Sub	Signal	Housing/Shell (Unthreaded)	5 A	2	Phosphor Bronze	Solder	Gold	Nickel Plated, Steel	Black	16 µin	0.41 µm	Shielded
Omron Electronics Inc-EMC Div XM3F-3720-112	105 ░C	-55 °C	300 VDC	37	UL94 V-0	4 (DC, C)	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle, Female Sockets	D-Sub	Signal		5 A	2	Phosphor Bronze	Solder	Gold		Black	16 µin	0.41 µm	Board Lock, Shielded
Omron Electronics Inc-EMC Div XM3F-3720-132	105 ░C	-55 °C	300 VDC	37	UL94 V-0	4 (DC, C)	Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle, Female Sockets	D-Sub	Signal	Female Screwlock (4-40), Mating Side	5 A	2	Phosphor Bronze	Solder	Gold		Black	16 µin	0.41 µm	Board Lock, Shielded
Omron Electronics Inc-EMC Div XM3F-0920-112	105 ░C	-55 °C	300 VDC	9	UL94 V-0		Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle, Female Sockets	D-Sub	Signal		5 A	2	Phosphor Bronze	Solder	Gold		Black	16 µin	0.41 µm	Board Lock, Shielded	DE, E	1
Omron Electronics Inc-EMC Div XM3F-0920	105 ░C	-55 °C	300 VDC	9	UL94 V-0		Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle, Female Sockets	D-Sub	Signal	Housing/Shell (Unthreaded)	5 A	2	Phosphor Bronze	Solder	Gold	Nickel Plated, Steel	Black	16 µin	0.41 µm	Shielded	DE, E	1
Omron Electronics Inc-EMC Div XM3F-2520	105 ░C	-55 °C	300 VDC		UL94 V-0		Through Hole	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle, Female Sockets	D-Sub	Signal	Housing/Shell (Unthreaded)	5 A	2	Phosphor Bronze	Solder	Gold	Nickel Plated, Steel	Black	16 µin	0.41 µm	Shielded	B, DB	3
