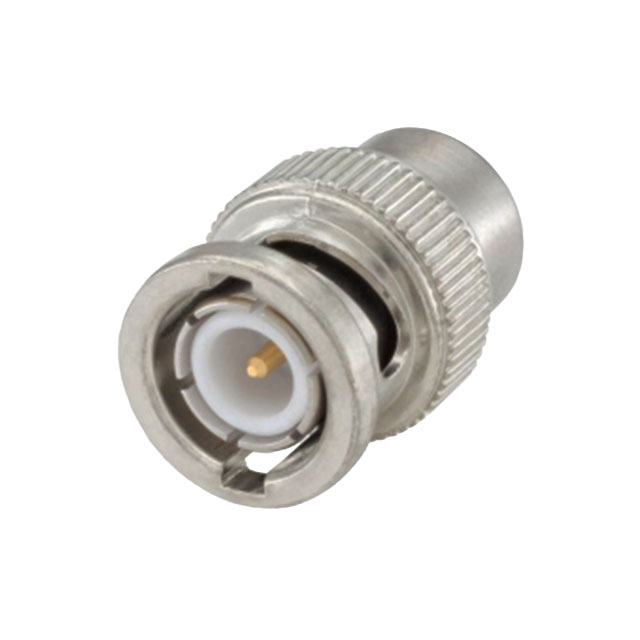

51S1RR-001N4
ActiveRosenberger
CONN TERMINATOR PLUG BNC 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51S1RR-001N4
ActiveRosenberger
CONN TERMINATOR PLUG BNC 50OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 51S1RR-001N4 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Brass |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 2 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 24.79 | |
| 10 | $ 21.70 | |||
| 30 | $ 20.77 | |||
| 50 | $ 20.10 | |||
| 100 | $ 19.43 | |||
| 250 | $ 18.36 | |||
| 500 | $ 17.82 | |||
Description
General part information
51S1RR Series
Terminator Coax Connector Plug, Male Pin BNC 50 Ohms
